C03.42 High load cable carriers - CSB® Plastic Bearing Technology

Product properties

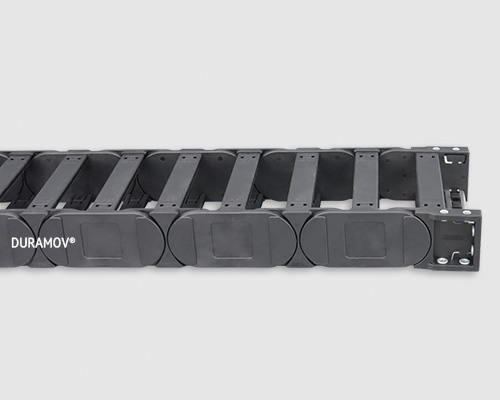

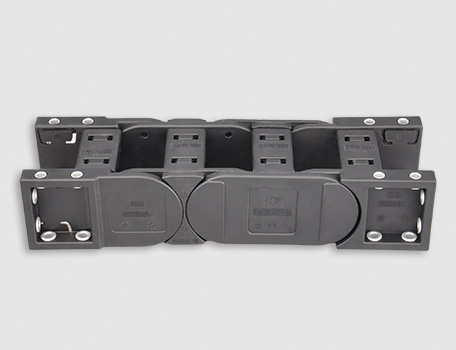

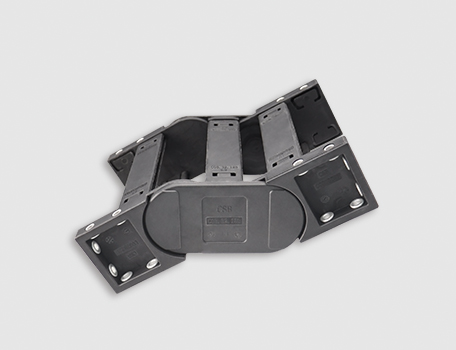

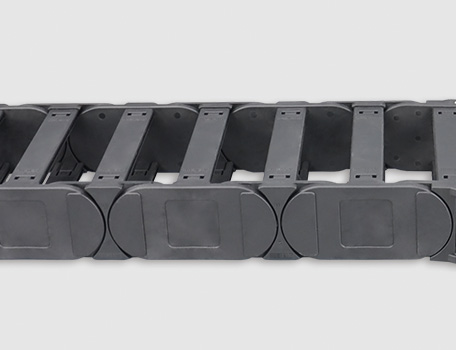

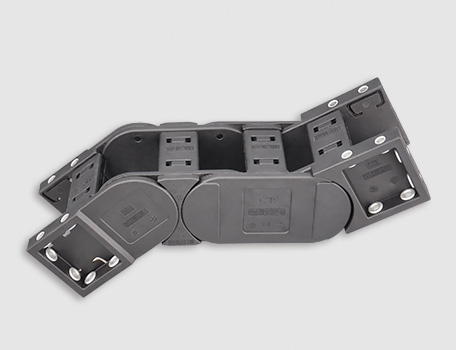

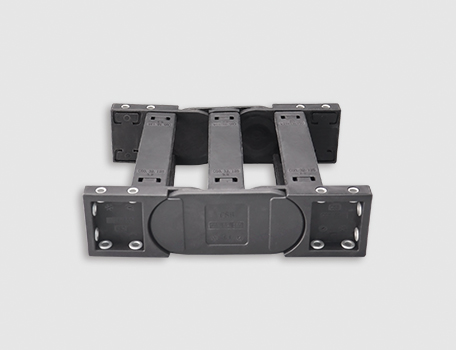

C03.42 high load cable carriers combines all the advantages of the previous versions and is the best DURAMOV® carriers in the product range. C03.42 cable carriers is stronger whilst having the same or even smaller dimensions than previous versions. You can increase the service life of your application with C03.42 cable carriers whilst reducing cost.

● Long-term application temperature：-40/+120℃

● Inner height：42 mm
● Inner width：50-200 mm
● Bend radius：75-350 mm
● Link pitch：67 mm

Standard products

C03.42 High load cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

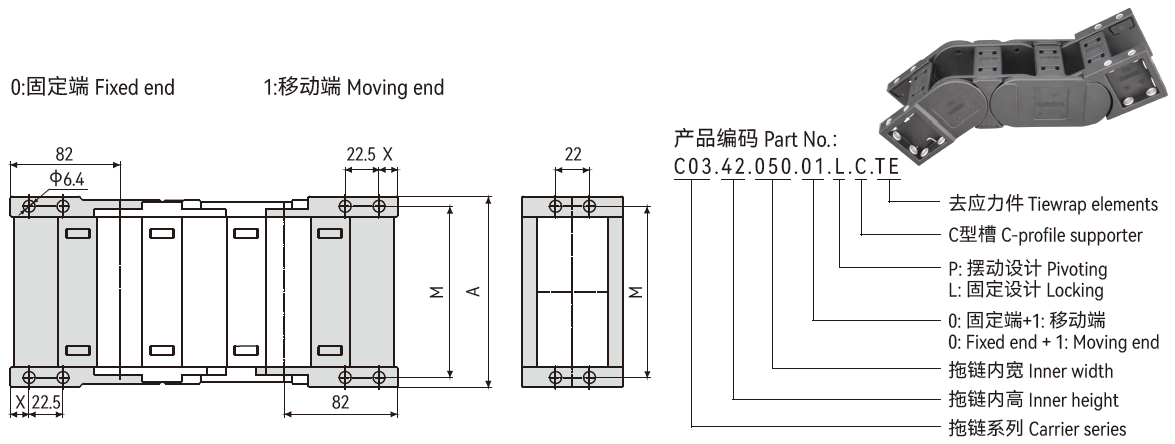

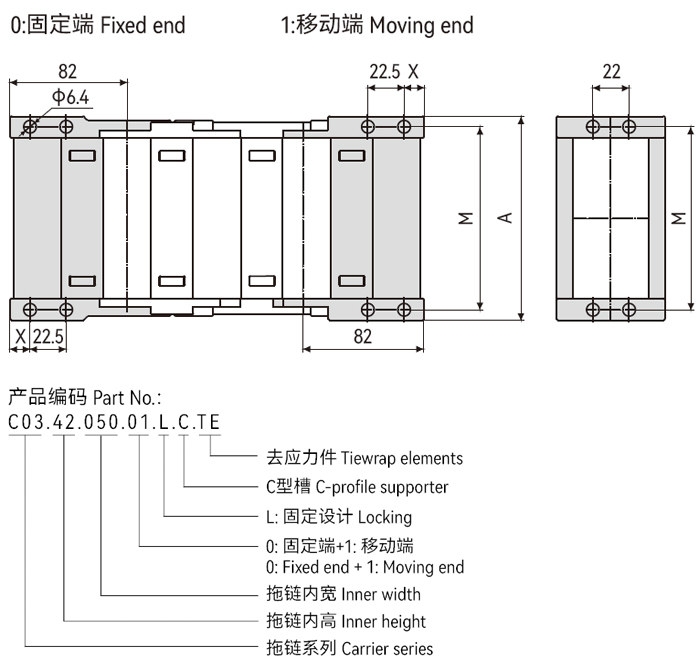

▊Mounting brackets - Locking


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
Part No. Locking	Part No. Locking	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C03.42.050.01.L.C.TE	C03.42.050.11.L.C.TE	50	77	15	66	3
C03.42.075.01.L.C.TE	C03.42.075.11.L.C.TE	75	102	15	91	4
C03.42.100.01.L.C.TE	C03.42.100.11.L.C.TE	100	127	15	116	6
C03.42.125.01.L.C.TE	C03.42.125.11.L.C.TE	125	152	15	141	8
C03.42.150.01.L.C.TE	C03.42.150.11.L.C.TE	150	157	15	166	10
C03.42.175.01.L.C.TE	C03.42.175.11.L.C.TE	175	202	15	191	11
C03.42.200.01.L.C.TE	C03.42.200.11.L.C.TE	200	227	15	216	13

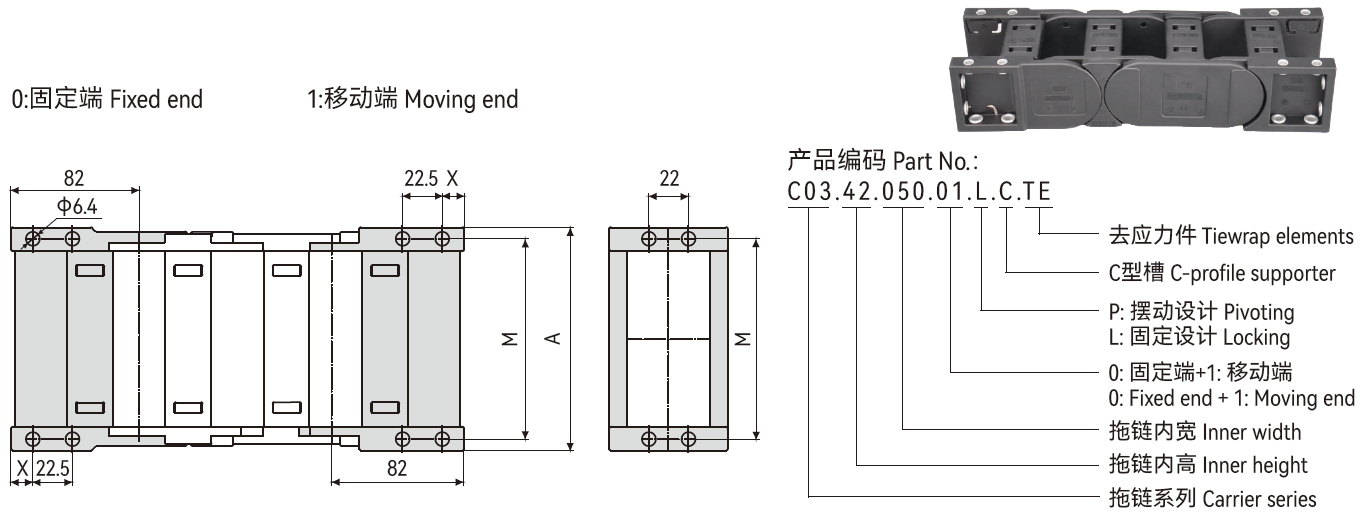

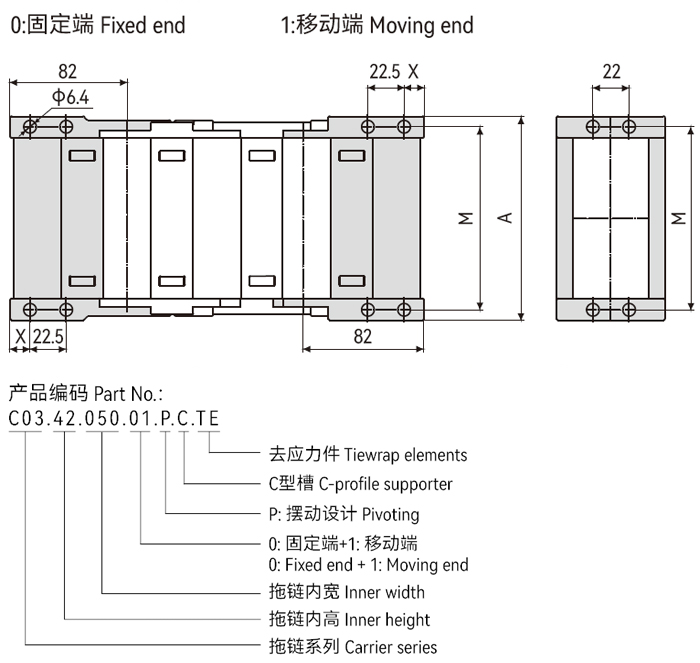

▊Mounting brackets - Pivoting


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
Part No. Pivoting	Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C03.42.050.01.P.C.TE	C03.42.050.11.P.C.TE	50	77	15	66	3
C03.42.050.01.P.C.TE	C03.42.050.11.P.C.TE	75	102	15	91	4
C03.42.100.01.P.C.TE	C03.42.100.11.P.C.TE	100	127	15	116	6
C03.42.125.01.P.C.TE	C03.42.125.11.P.C.TE	125	152	15	141	8
C03.42.150.01.P.C.TE	C03.42.150.11.P.C.TE	150	157	15	166	10
C03.42.175.01.P.C.TE	C03.42.175.11.P.C.TE	175	202	15	191	11
C03.42.200.01.P.C.TE	C03.42.200.11.P.C.TE	200	227	15	216	13

▊Installation dimensions

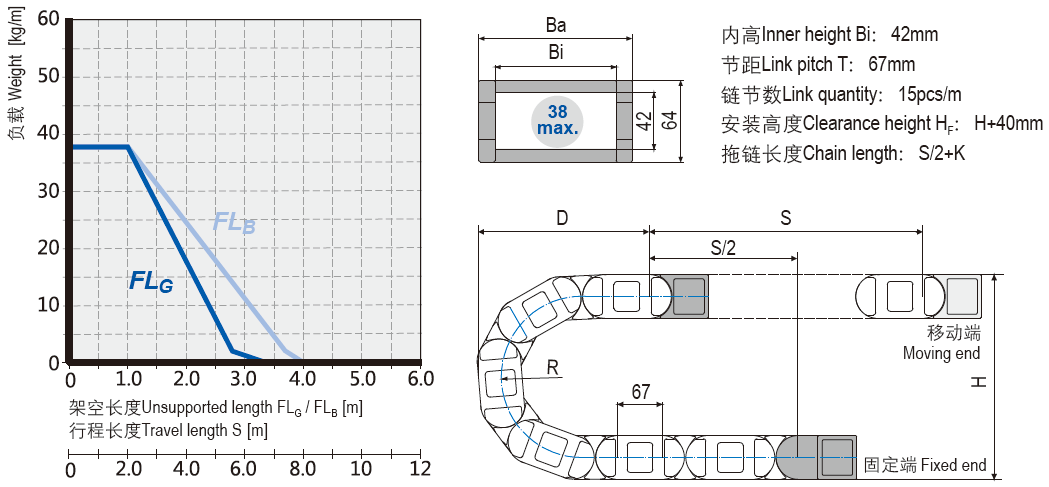

Unsupported length	≤ 4.2m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	12-300m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 50m	Sliding speed / acceleration	≤4 [m/s] / 25 [m/s² ]
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.1m	Flammability Class	UL94 HB

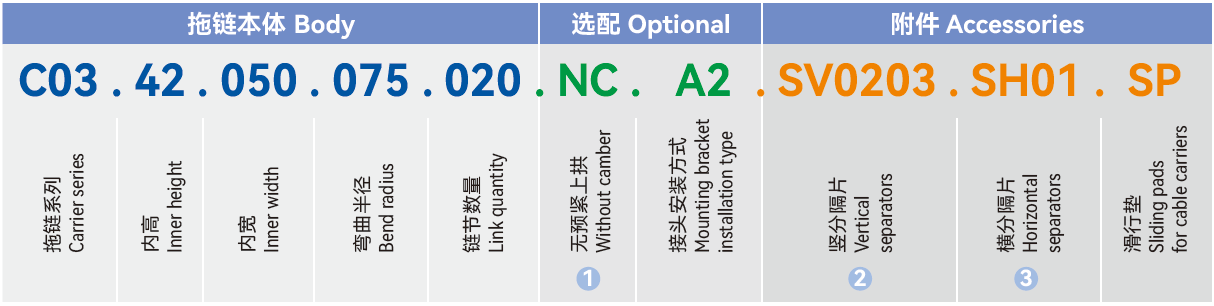

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

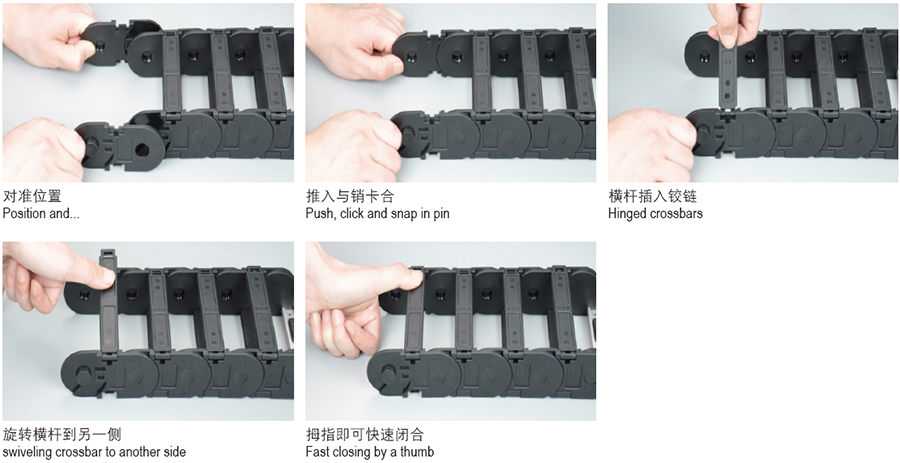

▊ Installation

▊Installation dimensions

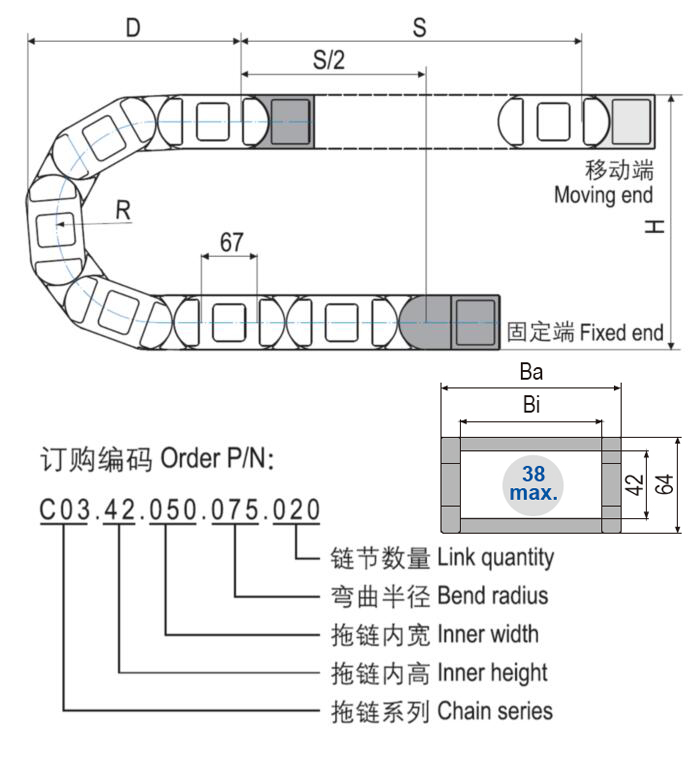

High load cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	075	100	125	150	175	200	250	300	350
H	214	264	314	364	414	464	564	664	764
D	208	233	258	283	308	333	383	433	483
K	370	450	530	610	685	765	920	1080	1235

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03.42 For long travels gliding applications | 12-300m


R	075	100	125	150	175	200	250	300	350
H2	150	200	186	186	186	186	186	186	186
D2	174	199	475	570	670	780	1030	1150	1500
K2	370	450	804	938	1139	1340	1675	1943	2412
△CL	-	-	230	300	380	460	660	730	1030

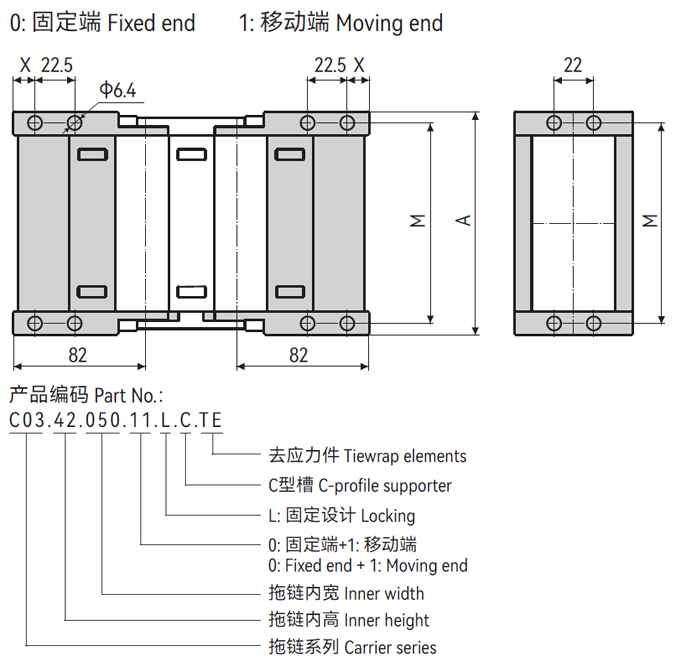

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03.42 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

▊C03.42.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

C03 High load cable chains

Type PDF

Size 729KB

Time 10-2023

No. CSB/CAT.064

download

673
