C03H.56 High-strength cable carriers - CSB® Plastic Bearing Technology

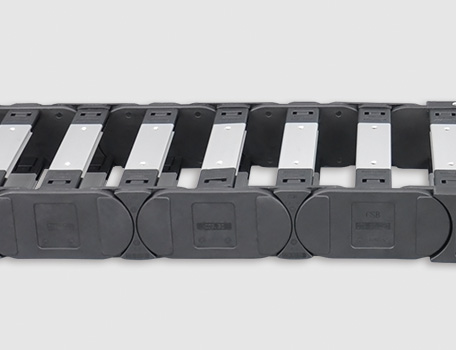

Product properties

C03H.56 high-strength cable carrier is an improved version based on C03 cable carrier. High-strength materials and stable structural design for C03H higher load performance. The special crossbar design allows the inner width of the carrier to be freely defined.

● Inner height：56 mm
● Inner width：200-600 mm
● Bend radius：135-500 mm
● Link pitch：91 mm

Standard products

C03H.56 High-strength cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

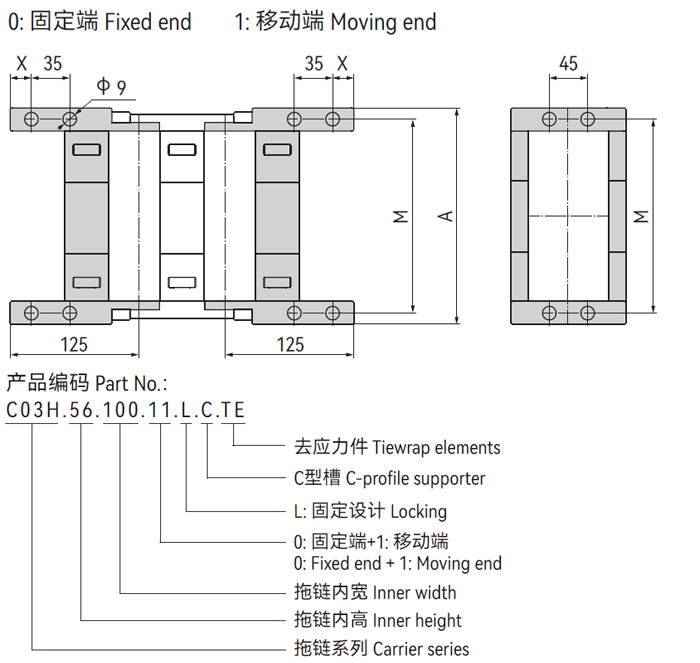

▊Mounting brackets - Locking


A2 The number of links is even	A1 The number of links is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
Part No. （ Locking ）	Part No. （ Locking ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
C03H.56.200.01.L.C.TE	C03H.56.200.11.L.C.TE	200	241	20	223	13
C03H.56.212.01.L.C.TE	C03H.56.212.11.L.C.TE	212	253	20	235	14
C03H.56.225.01.L.C.TE	C03H.56.225.11.L.C.TE	225	266	20	248	15
C03H.56.237.01.L.C.TE	C03H.56.237.11.L.C.TE	237	278	20	260	15
C03H.56.250.01.L.C.TE	C03H.56.250.11.L.C.TE	250	291	20	273	16
C03H.56.262.01.L.C.TE	C03H.56.262.11.L.C.TE	262	303	20	285	17
C03H.56.275.01.L.C.TE	C03H.56.275.11.L.C.TE	275	317	20	298	18
C03H.56.287.01.L.C.TE	C03H.56.287.11.L.C.TE	287	328	20	310	19
C03H.56.300.01.L.C.TE	C03H.56.300.11.L.C.TE	300	341	20	323	20
C03H.56.312.01.L.C.TE	C03H.56.312.11.L.C.TE	312	353	20	335	20
C03H.56.325.01.L.C.TE	C03H.56.325.11.L.C.TE	325	366	20	348	21
C03H.56.337.01.L.C.TE	C03H.56.337.11.L.C.TE	337	378	20	360	22
C03H.56.350.01.L.C.TE	C03H.56.350.11.L.C.TE	350	391	20	373	23
C03H.56.362.01.L.C.TE	C03H.56.362.11.L.C.TE	362	403	20	385	24
C03H.56.375.01.L.C.TE	C03H.56.375.11.L.C.TE	375	416	20	398	25
C03H.56.387.01.L.C.TE	C03H.56.387.11.L.C.TE	387	428	20	410	25
C03H.56.400.01.L.C.TE	C03H.56.400.11.L.C.TE	400	441	20	423	26
C03H.56.412.01.L.C.TE	C03H.56.412.11.L.C.TE	412	453	20	435	27
C03H.56.425.01.L.C.TE	C03H.56.425.11.L.C.TE	425	466	20	448	28
C03H.56.437.01.L.C.TE	C03H.56.437.11.L.C.TE	437	478	20	460	29
C03H.56.450.01.L.C.TE	C03H.56.450.11.L.C.TE	450	491	20	473	30
C03H.56.462.01.L.C.TE	C03H.56.462.11.L.C.TE	462	503	20	485	30
C03H.56.475.01.L.C.TE	C03H.56.475.11.L.C.TE	475	516	20	498	31
C03H.56.487.01.L.C.TE	C03H.56.487.11.L.C.TE	487	528	20	510	32
C03H.56.500.01.L.C.TE	C03H.56.500.11.L.C.TE	500	541	20	523	33
C03H.56.512.01.L.C.TE	C03H.56.512.11.L.C.TE	512	553	20	535	34
C03H.56.525.01.L.C.TE	C03H.56.525.11.L.C.TE	525	566	20	548	35
C03H.56.537.01.L.C.TE	C03H.56.537.11.L.C.TE	537	578	20	560	35
C03H.56.550.01.L.C.TE	C03H.56.550.11.L.C.TE	550	591	20	573	36
C03H.56.600.01.L.C.TE	C03H.56.600.11.L.C.TE	600	641	20	623	40

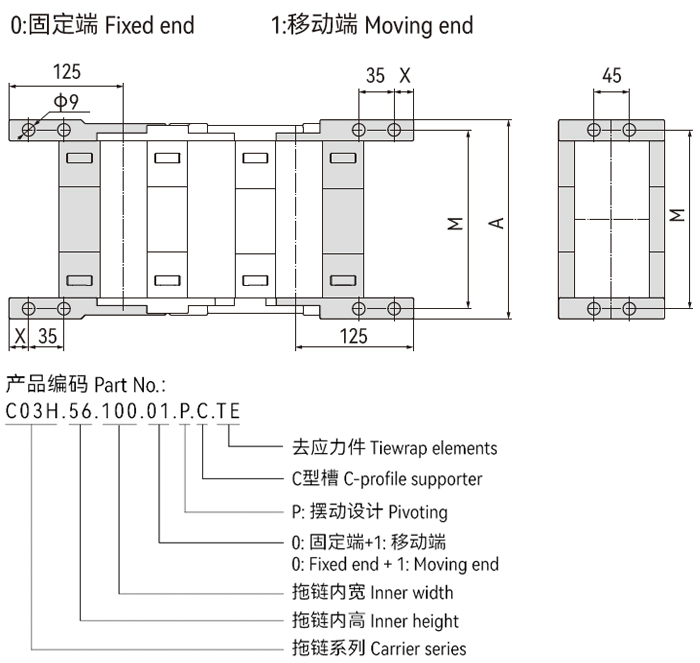

▊Mounting brackets - Pivoting


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
Part No. （ Pivoting ）	Part No. （ Pivoting ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
C03H.56.200.01.P.C.TE	C03H.56.200.11.P.C.TE	200	241	20	223	13
C03H.56.212.01.P.C.TE	C03H.56.212.11.P.C.TE	212	253	20	235	14
C03H.56.225.01.P.C.TE	C03H.56.225.11.P.C.TE	225	266	20	248	15
C03H.56.237.01.P.C.TE	C03H.56.237.11.P.C.TE	237	278	20	260	15
C03H.56.250.01.P.C.TE	C03H.56.250.11.P.C.TE	250	291	20	273	16
C03H.56.262.01.P.C.TE	C03H.56.262.11.P.C.TE	262	303	20	285	17
C03H.56.275.01.P.C.TE	C03H.56.275.11.P.C.TE	275	317	20	298	18
C03H.56.287.01.P.C.TE	C03H.56.287.11.P.C.TE	287	328	20	310	19
C03H.56.300.01.P.C.TE	C03H.56.300.11.P.C.TE	300	341	20	323	20
C03H.56.312.01.P.C.TE	C03H.56.312.11.P.C.TE	312	353	20	335	20
C03H.56.325.01.P.C.TE	C03H.56.325.11.P.C.TE	325	366	20	348	21
C03H.56.337.01.P.C.TE	C03H.56.337.11.P.C.TE	337	378	20	360	22
C03H.56.350.01.P.C.TE	C03H.56.350.11.P.C.TE	350	391	20	373	23
C03H.56.362.01.P.C.TE	C03H.56.362.11.P.C.TE	362	403	20	385	24
C03H.56.375.01.P.C.TE	C03H.56.375.11.P.C.TE	375	416	20	398	25
C03H.56.387.01.P.C.TE	C03H.56.387.11.P.C.TE	387	428	20	410	25
C03H.56.400.01.P.C.TE	C03H.56.400.11.P.C.TE	400	441	20	423	26
C03H.56.412.01.P.C.TE	C03H.56.412.11.P.C.TE	412	453	20	435	27
C03H.56.425.01.P.C.TE	C03H.56.425.11.P.C.TE	425	466	20	448	28
C03H.56.437.01.P.C.TE	C03H.56.437.11.P.C.TE	437	478	20	460	29
C03H.56.450.01.P.C.TE	C03H.56.450.11.P.C.TE	450	491	20	473	30
C03H.56.462.01.P.C.TE	C03H.56.462.11.P.C.TE	462	503	20	485	30
C03H.56.475.01.P.C.TE	C03H.56.475.11.P.C.TE	475	516	20	498	31
C03H.56.487.01.P.C.TE	C03H.56.487.11.P.C.TE	487	528	20	510	32
C03H.56.500.01.P.C.TE	C03H.56.500.11.P.C.TE	500	541	20	523	33
C03H.56.512.01.P.C.TE	C03H.56.512.11.P.C.TE	512	553	20	535	34
C03H.56.525.01.P.C.TE	C03H.56.525.11.P.C.TE	525	566	20	548	35
C03H.56.537.01.P.C.TE	C03H.56.537.11.P.C.TE	537	578	20	560	35
C03H.56.550.01.P.C.TE	C03H.56.550.11.P.C.TE	550	591	20	573	36
C03H.56.600.01.P.C.TE	C03H.56.600.11.P.C.TE	600	641	20	623	40

▊Installation dimensions

Unsupported length	≤ 5.0m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	≤ 400m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 50m	Sliding speed / acceleration	≤ 10 [m/s] / 50 [m/s² ]
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.5m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links
② SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

▊Installation dimensions


*Please consult CSB® if space is particularly restricted.

R	135	150	175	200	250	300	350	400	450	500
H	354	384	434	484	584	684	784	884	984	1084
D	314	329	354	379	429	479	529	579	629	679
K	610	655	735	815	970	1125	1285	1440	1600	1755

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03H.56 For long travels gliding applications | 12-400m


R	135	150	175	200	250	300	350	400	450	500
H2	270	266	266	266	266	266	266	266	266	266
D2	268	450	580	710	980	1180	1440	1530	1700	1850
K2	610	819	1092	1274	1638	2002	2275	1548	2912	3276
△CL	-	159	259	359	559	709	905	959	1059	1159

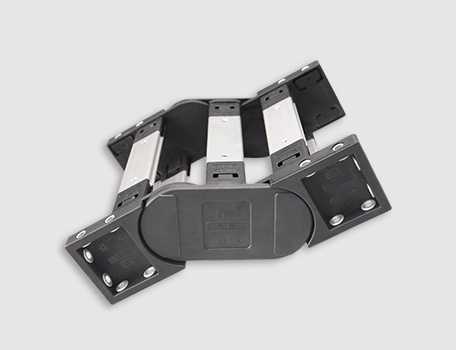

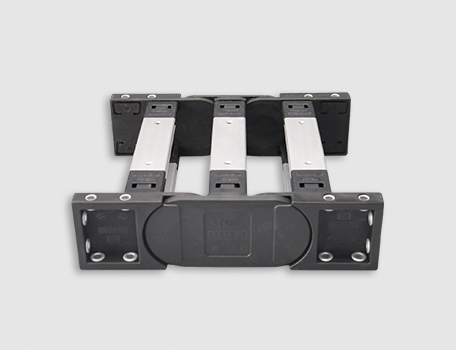

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03H.56 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

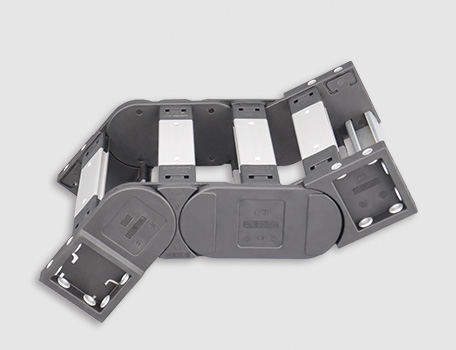

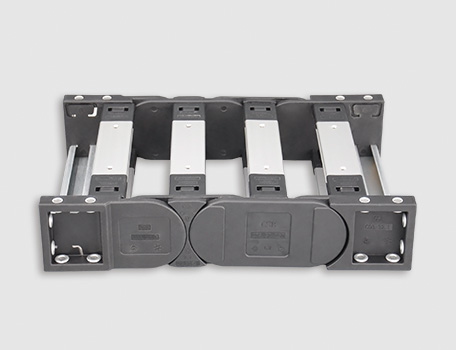

▊C03H.56.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

C03H High-strength cable carriers

Type PDF

Size 618KB

Time 10-2024

No. CSB/CAT.067

download
