Product properties

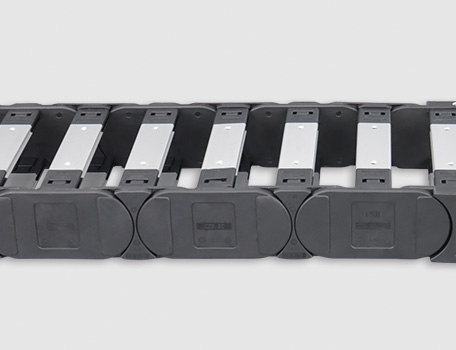

C03H.80 high-strength cable carrier is an improved version based on C03 cable carrier. High-strength materials and stable structural design for C03H higher load performance. The special crossbar design allows the inner width of the carrier to be freely defined.

● Inner height： 80 mm
● Inner width： 200-600 mm
● Bend radius：150-500 mm
● Link pitch：111 mm

Standard products

C03H.80 High-strength cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

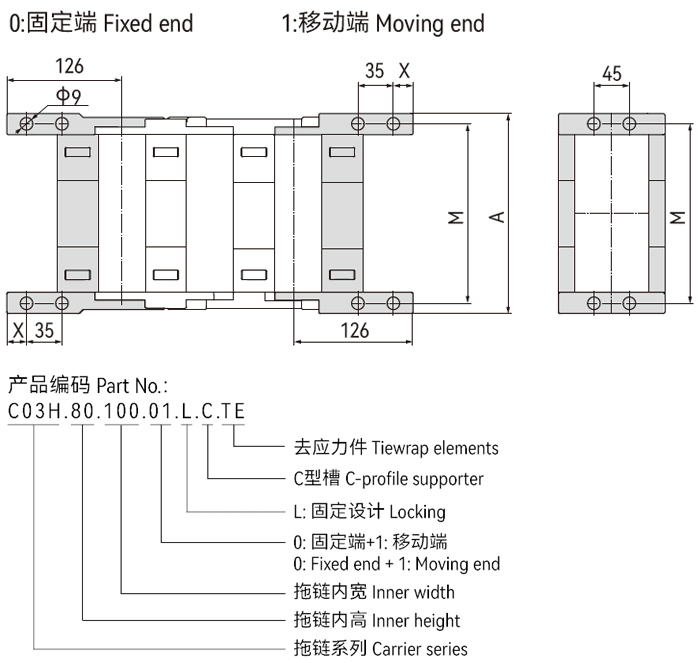

▊Mounting brackets - Locking


A2 The number of links is even	A1 The number of links is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
Part No. （ Locking ）	Part No. （ Locking ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
C03H.80.200.01.L.C.TE	C03H.80.200.11.L.C.TE	200	248	21	228	13
C03H.80.212.01.L.C.TE	C03H.80.212.11.L.C.TE	212	260	21	240	14
C03H.80.225.01.L.C.TE	C03H.80.225.11.L.C.TE	225	273	21	253	15
C03H.80.237.01.L.C.TE	C03H.80.237.11.L.C.TE	237	285	21	265	15
C03H.80.250.01.L.C.TE	C03H.80.250.11.L.C.TE	250	298	21	278	16
C03H.80.262.01.L.C.TE	C03H.80.262.11.L.C.TE	262	310	21	290	17
C03H.80.275.01.L.C.TE	C03H.80.275.11.L.C.TE	275	323	21	303	18
C03H.80.288.01.L.C.TE	C03H.80.288.11.L.C.TE	288	336	21	316	19
C03H.80.300.01.L.C.TE	C03H.80.300.11.L.C.TE	300	348	21	328	20
C03H.80.313.01.L.C.TE	C03H.80.313.11.L.C.TE	313	361	21	341	20
C03H.80.325.01.L.C.TE	C03H.80.325.11.L.C.TE	325	373	21	353	21
C03H.80.338.01.L.C.TE	C03H.80.338.11.L.C.TE	338	386	21	366	22
C03H.80.350.01.L.C.TE	C03H.80.350.11.L.C.TE	350	398	21	378	23
C03H.80.362.01.L.C.TE	C03H.80.362.11.L.C.TE	362	410	21	390	24
C03H.80.375.01.L.C.TE	C03H.80.375.11.L.C.TE	375	423	21	403	25
C03H.80.387.01.L.C.TE	C03H.80.387.11.L.C.TE	387	435	21	415	25
C03H.80.400.01.L.C.TE	C03H.80.400.11.L.C.TE	400	448	21	428	26
C03H.80.412.01.L.C.TE	C03H.80.412.11.L.C.TE	412	460	21	440	27
C03H.80.425.01.L.C.TE	C03H.80.425.11.L.C.TE	425	473	21	453	28
C03H.80.437.01.L.C.TE	C03H.80.437.11.L.C.TE	437	485	21	465	29
C03H.80.450.01.L.C.TE	C03H.80.450.11.L.C.TE	450	498	21	478	30
C03H.80.462.01.L.C.TE	C03H.80.462.11.L.C.TE	462	510	21	490	30
C03H.80.475.01.L.C.TE	C03H.80.475.11.L.C.TE	475	523	21	503	31
C03H.80.487.01.L.C.TE	C03H.80.487.11.L.C.TE	487	535	21	515	32
C03H.80.500.01.L.C.TE	C03H.80.500.11.L.C.TE	500	548	21	528	33
C03H.80.512.01.L.C.TE	C03H.80.512.11.L.C.TE	512	560	21	540	34
C03H.80.525.01.L.C.TE	C03H.80.525.11.L.C.TE	525	573	21	553	35
C03H.80.537.01.L.C.TE	C03H.80.537.11.L.C.TE	537	585	21	565	35
C03H.80.550.01.L.C.TE	C03H.80.550.11.L.C.TE	550	598	21	578	36
C03H.80.600.01.L.C.TE	C03H.80.600.11.L.C.TE	600	648	21	628	40

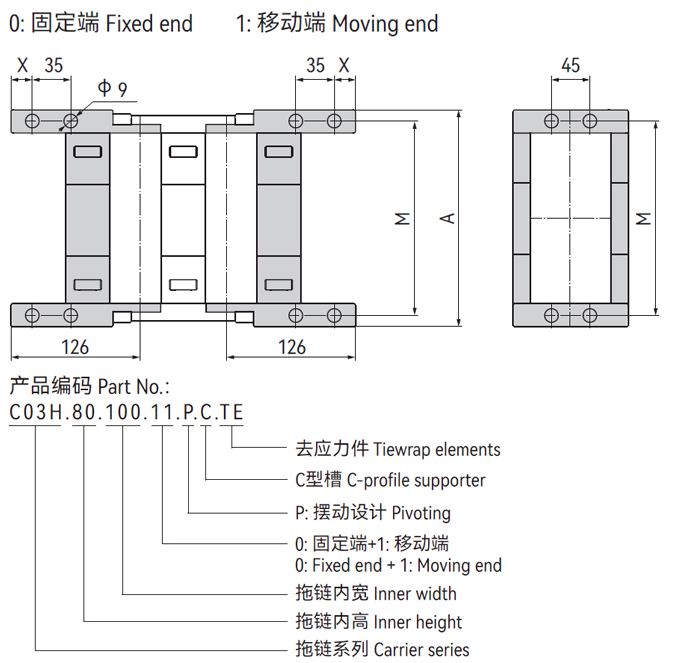

▊Mounting brackets - Pivoting


A2 The number of links is even	A1 The number of links is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
Part No. （ Pivoting ）	Part No. （ Pivoting ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
C03H.80.200.01.P.C.TE	C03H.80.200.11.P.C.TE	200	248	21	228	13
C03H.80.212.01.P.C.TE	C03H.80.212.11.P.C.TE	212	260	21	240	14
C03H.80.225.01.P.C.TE	C03H.80.225.11.P.C.TE	225	273	21	253	15
C03H.80.237.01.P.C.TE	C03H.80.237.11.P.C.TE	237	285	21	265	15
C03H.80.250.01.P.C.TE	C03H.80.250.11.P.C.TE	250	298	21	278	16
C03H.80.262.01.P.C.TE	C03H.80.262.11.P.C.TE	262	310	21	290	17
C03H.80.275.01.P.C.TE	C03H.80.275.11.P.C.TE	275	323	21	303	18
C03H.80.288.01.P.C.TE	C03H.80.288.11.P.C.TE	288	336	21	316	19
C03H.80.300.01.P.C.TE	C03H.80.300.11.P.C.TE	300	348	21	328	20
C03H.80.313.01.P.C.TE	C03H.80.313.11.P.C.TE	313	361	21	341	20
C03H.80.325.01.P.C.TE	C03H.80.325.11.P.C.TE	325	373	21	353	21
C03H.80.338.01.P.C.TE	C03H.80.338.11.P.C.TE	338	386	21	366	22
C03H.80.350.01.P.C.TE	C03H.80.350.11.P.C.TE	350	398	21	378	23
C03H.80.362.01.P.C.TE	C03H.80.362.11.P.C.TE	362	410	21	390	24
C03H.80.375.01.P.C.TE	C03H.80.375.11.P.C.TE	375	423	21	403	25
C03H.80.387.01.P.C.TE	C03H.80.387.11.P.C.TE	387	435	21	415	25
C03H.80.400.01.P.C.TE	C03H.80.400.11.P.C.TE	400	448	21	428	26
C03H.80.412.01.P.C.TE	C03H.80.412.11.P.C.TE	412	460	21	440	27
C03H.80.425.01.P.C.TE	C03H.80.425.11.P.C.TE	425	473	21	453	28
C03H.80.437.01.P.C.TE	C03H.80.437.11.P.C.TE	427	485	21	465	29
C03H.80.450.01.P.C.TE	C03H.80.450.11.P.C.TE	450	498	21	478	30
C03H.80.462.01.P.C.TE	C03H.80.462.11.P.C.TE	462	510	21	490	30
C03H.80.475.01.P.C.TE	C03H.80.475.11.P.C.TE	475	523	21	503	31
C03H.80.487.01.P.C.TE	C03H.80.487.11.P.C.TE	487	535	21	515	32
C03H.80.500.01.P.C.TE	C03H.80.500.11.P.C.TE	500	548	21	528	33
C03H.80.512.01.P.C.TE	C03H.80.512.11.P.C.TE	512	560	21	540	34
C03H.80.525.01.P.C.TE	C03H.80.525.11.P.C.TE	525	573	21	553	35
C03H.80.537.01.P.C.TE	C03H.80.537.11.P.C.TE	537	585	21	565	35
C03H.80.550.01.P.C.TE	C03H.80.550.11.P.C.TE	550	598	21	578	36
C03H.80.600.01.P.C.TE	C03H.80.600.11.P.C.TE	600	648	21	628	40

▊Installation dimensions

Unsupported length	≤ 5.8m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	≤ 400m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 60m	Sliding speed / acceleration	≤ 10 [m/s] / 50 [m/s² ]
Vertical standing	≤ 4.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 3.0m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links
② SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

▊Installation dimensions


*Please consult CSB® if space is particularly restricted.

R	150	200	250	300	350	400	450	500
H	408	508	608	708	808	908	1008	1108
D	445	495	545	595	645	695	745	795
K	693	850	1007	1164	1321	1479	1635	1793

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03H.80 For long travels gliding applications | 12-400m


R	150	200	250	300	350	400	450	500
H2	242	242	242	242	242	242	242	242
D2	550	800	1000	1200	1450	1600	1850	2100
K2	890	1330	1665	2000	2330	2660	3050	3440
△CL	189	389	539	689	889	989	1189	1389

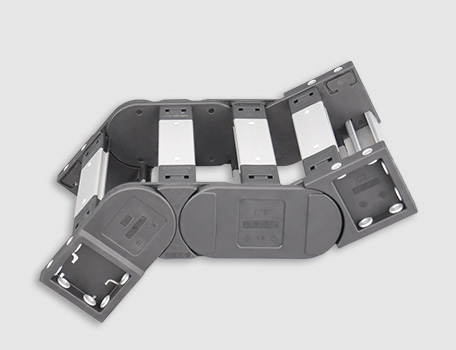

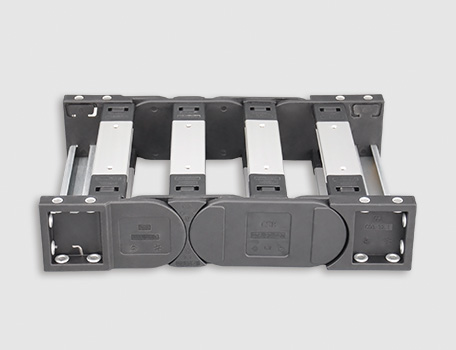

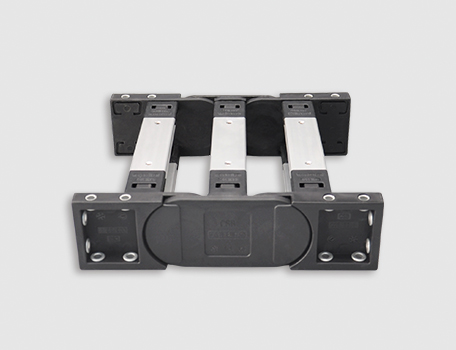

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03H.80 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

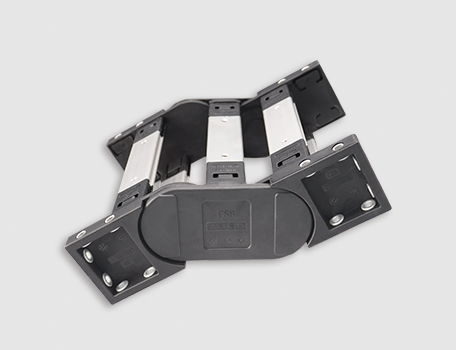

▊C03H.80.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
