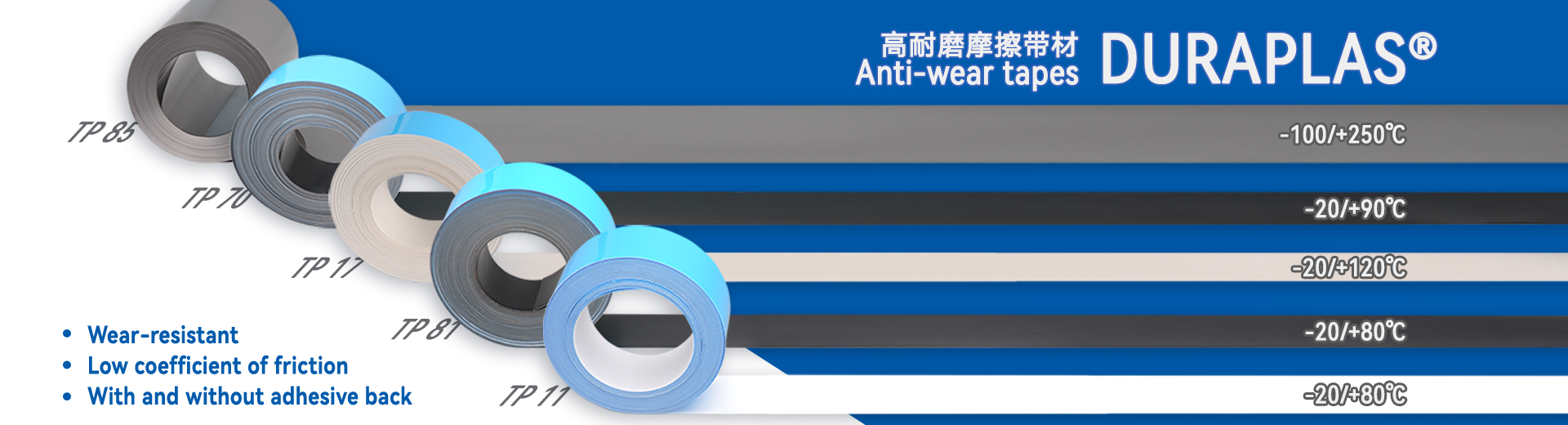

TRIBOTAPE® 11 Anti-wear tapes

Product properties

● FDA grade

● Low coefficients of friction

● Available underwater

● Easy to cut

● Continuous working temperature: -20/+80℃


TRIBOTAPE® 11 Anti-wear tapes
Dimensions

Technical data

Material

Dry friction

coefficient

[u]

Max.

static load

[Mpa]

Max.

dynamic load

[Mpa]

Max. PV

[N/mm2xm/s]

Max. Speed [m/s]

Operation temperature* [℃]

ContinuousIntermittentLong-termShort-term
TRIBOTAPER®110.05-0.151550.250.30.5-20/+80-50/+100

*Operation temperature of standard tape with adhesive back

Please contact us for the operation temperature of the tape without adhesive back

TRIBOTAPE® Anti-wear tapes

Type PDF
Size 207KB
Time 10-2023
No. CSB/CAT.062
download

651

Medium

TRIBOTAPE® 11
Chemical resistance

AlcoholResistant
HydrocarbonsResistant
Greases. oilsResistant
FuelsConditionally resistant
Diluted acidsResistant
Strong acidsConditionally resistant
Diluted alkalisResistant
Strong alkalisConditionally resistant
CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
