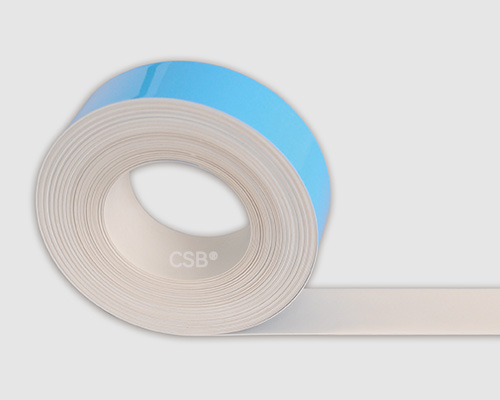

TRIBOTAPE® 17 Anti-wear tapes

Product properties

● FDA grade

● Low coefficients of friction

● Available high speed applications

● UV aging resistance

● Easy to cut

● Continuous working temperature: -20/+120℃


TRIBOTAPE® 17 Anti-wear tapes

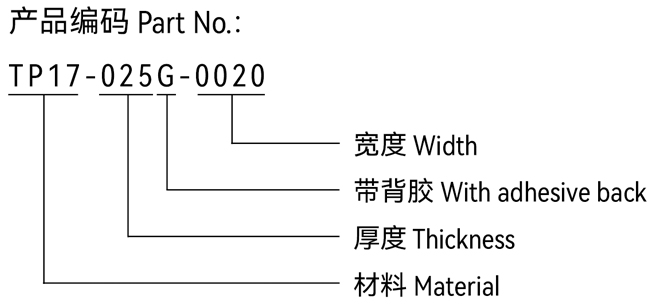

Dimensions

Technical data

Material

Dry friction

coefficient

[u]

Max.

static load

[Mpa]

Max.

dynamic load

[Mpa]

Max. PV

[N/mm2xm/s]

Max. Speed [m/s]

Operation temperature* [℃]

ContinuousIntermittentLong-termShort-term
TRIBOTAPER®170.05-0.121260.401.02.0-20/+120-50/+180

*Operation temperature of standard tape with adhesive back

Please contact us for the operation temperature of the tape without adhesive back

TRIBOTAPE® Anti-wear tapes

Type PDF
Size 207KB
Time 10-2023
No. CSB/CAT.062
download

539

MediumTRIBOTAPE® 17
Chemical resistance
AlcoholResistant
HydrocarbonsResistant
Greases. oilsResistant
FuelsResistant
Diluted acidsResistant
Strong acidsResistant
Diluted alkalisResistant
Strong alkalisResistant
CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
