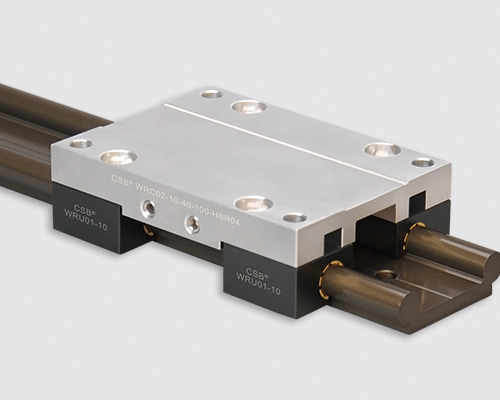

WRC02 Assembled hybrid carriages, HBR

Product properties

● Rolling and sliding hybrid carriages

● Smooth moving and driving force reduced 45% than the standard carriages

● Sliding liners material: EPB13

● For horizontal installation of WR02 guide rails

● Maintenance-free, dry-running

● Resistant dust and no noise



WRC02 Assembled hybrid carriages, HBR, Metric

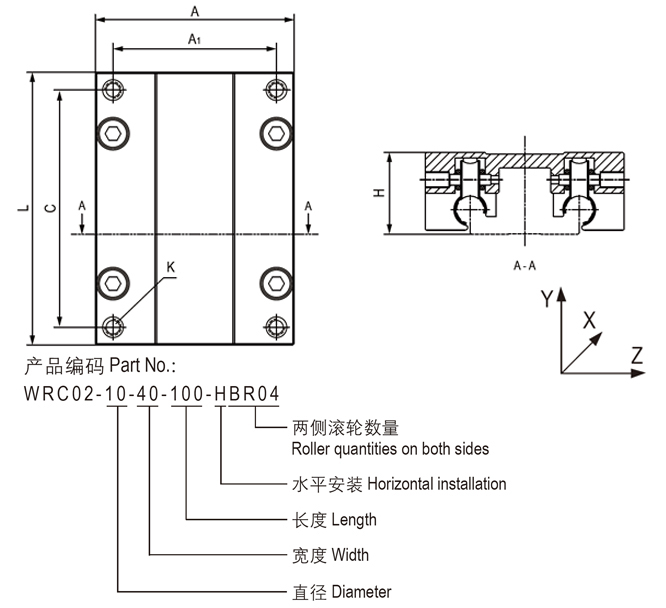

Dimensions

WRC02...HBR assembled hybrid carriages load capacity

Part No.

Static load
Dynamic load
Weight
Coz [N]
Mox [Nm]
Coy- [N]
Coy- [N]
[kg]
WRC02-10-40-100-HBR04
240017092025600.38
WRC02-10-40-150-HBR04
240029092025600.44
WRC02-10-40-200-HBR04
240041092025600.51
WRC02-10-80-100-HBR04
240017092025600.44
WRC02-10-80-150-HBR04
240029092025600.52
WRC02-10-80-200-HBR04
240041092025600.58
WRC02-16-60-150-HBR04
4200480144038800.78
WRC02-16-60-200-HBR04
4200690144038801.10
WRC02-20-80-150-HBR04
6400670176044001.50
WRC02-20-80-200-HBR04
6400990176044001.60
WRC02-20-80-250-HBR04
64001250176044001.80

Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.
