GSB-BB Flange ball bearings - CSB® Plastic Bearing Technology

Product properties

● Dry operation and maintenance-free
● Compensation of misalignment errors
● Absolute corrosion resistance
● Smooth running and no noise
● Long-term application temperature：-40°C-80°C
● Housing high-strength material: CSB® M163
● Bearing material: Races-POM, Cage-PA, Balls-Stainless steel or glass

Standard products

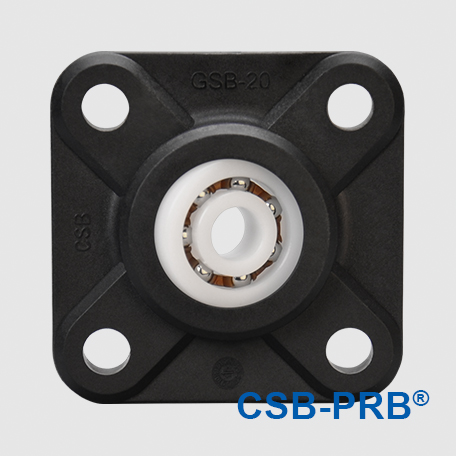

ES - Stainless steel balls

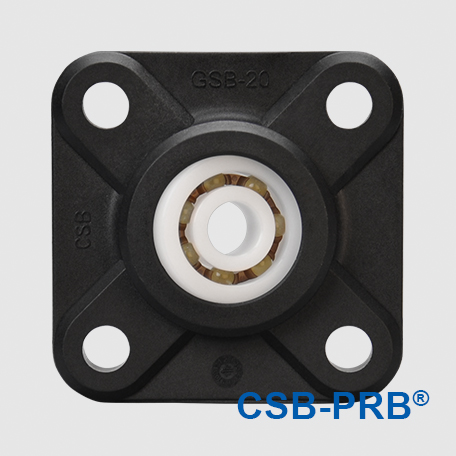

GL - Glass balls

GSB-BB Flange ball bearings

Part no.:

d1 [mm]：

D1 [mm]：

D2 [mm]：

A1 [mm]：

A2 [mm]：

M [mm]：

H [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Shop now

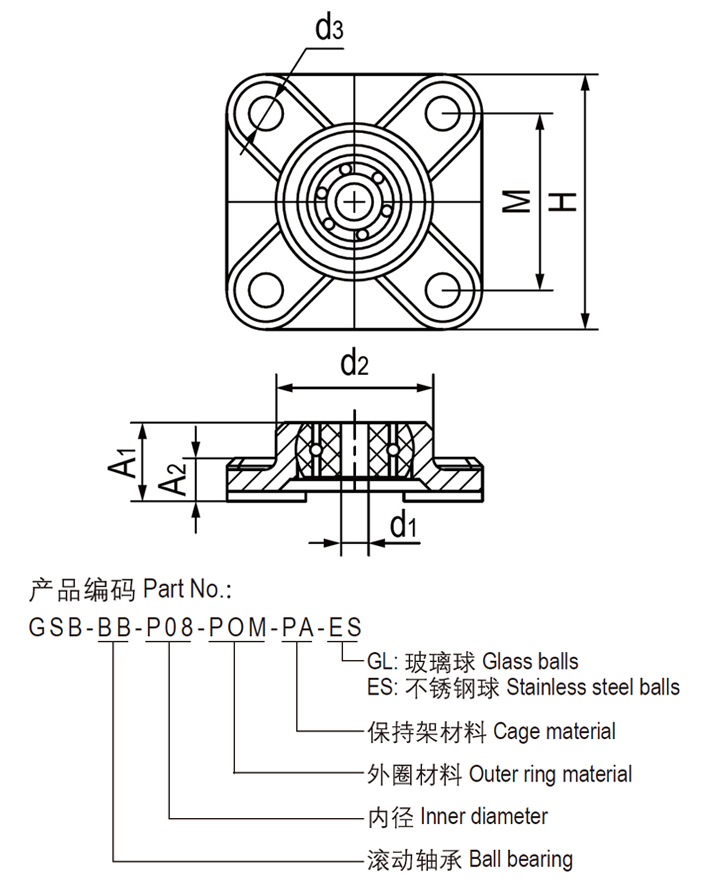

Dimensions

Product info.
Downloads

▊GSB-BB Flange ball bearings load capacity

Part No.	Max. capacity load		Max. speed	Max. pivot angle	Weight
Part No.	Static [N]	Dynamic [N]	[RPM]	[ ° ]	[g]
GSB-BB-P08-POM-PA-GL	80	94	2200	5	25.9
GSB-BB-P10-POM-PA-GL	110	130	1900	5	46.1
GSB-BB-P12-POM-PA-GL	130	147	2000	5	72.5
GSB-BB-P08-POM-PA-ES	80	94	2200	5	28.1
GSB-BB-P12-POM-PA-ES	110	130	1900	5	48.1
GSB-BB-P12-POM-PA-ES	130	147	2000	5	74.7

CSB-PRB® GSB-BB Flange Ball Bearings

Type PDF

Size 151KB

Time 12-2021

No. CSB/CAT.062E

download
