Operating data

Total system load

N

Average speed

m/s

Shafts quantity

pcs

Distance shafts -Ls

mm

Bearings per shaft

pcs

Distance bearings -Lb

mm

Installation method

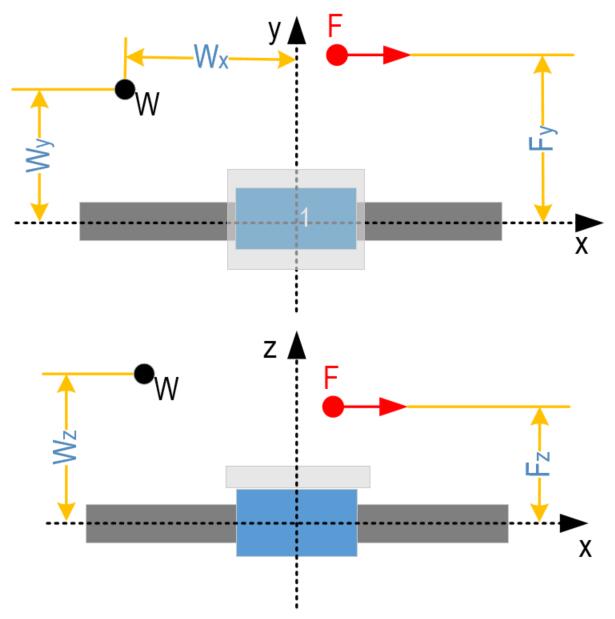

Position of load center

Wxmm
Wymm
Wzmm

Position of drive point

Fymm
Fzmm
Installation method
Results of calculation
Running characteristics
Smooth moving
Load characteristics
Safety load
Speed characteristics
Safety speed
Min. driving force
0 N
Min. operation temp.
0
Max. operation temp.
0

CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB sales engineers.
