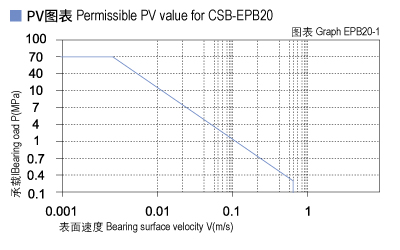

The max PV value of the CSB-EPB20 plastic bearings is 0.15N/mm2×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB20-1).
▊ Load, speed and temperature

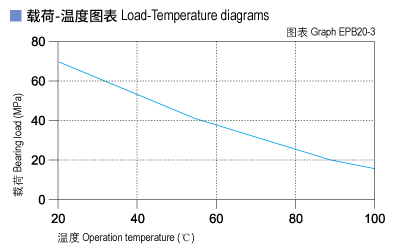

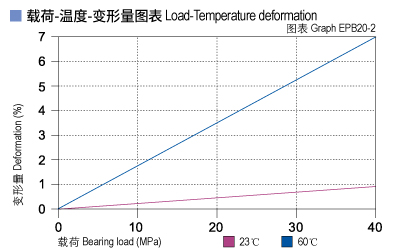

CSB-EPB20 allows the Max static load of 70Mpa, The max compressive deformation rate under the max load is listed in Graph EPB20-2, The actual load capacity of bearing is slightly less than 70Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 0.5m/s) results into higher temperature (Tmax: 90℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB20-3 for such variation.
▊ Friction factor, wear and shaft material
▊ Friction factor

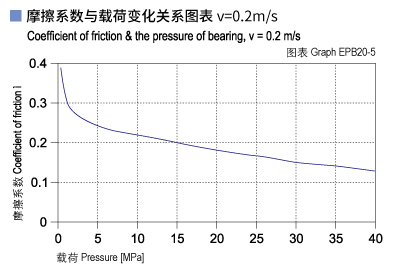

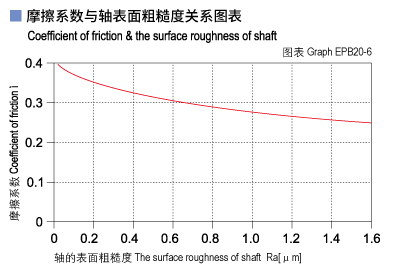

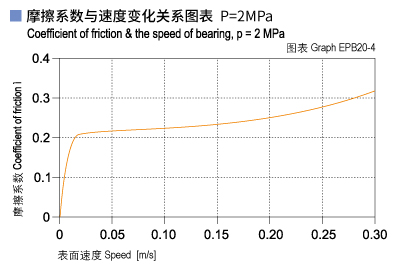

Similar with most of the plastic bearings, the friction factor of CSB-EPB20 is increased along with the operation speed when the loading is stable (see Graph EPB20-4) and is decreased along with the loading increasing when the operation speed is stable (see Graph EPB20-5). From Graph EPB20-6, it shows the friction factor of CSB-EPB20 is variable against different shaft surface roughness. The recommended shaft surface roughness is Ra0.3~0.6.
CSB-EPB20
Dry
Grease
Oil
Water
Friction coef. μ
0.15~0.35
0.09
0.04
0.04
▊ Wearing and shaft material

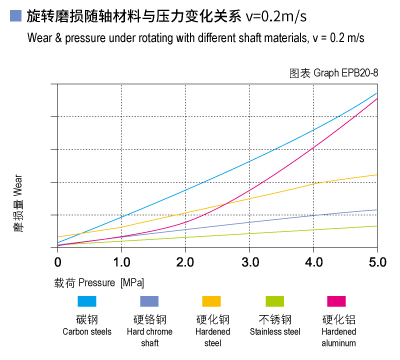

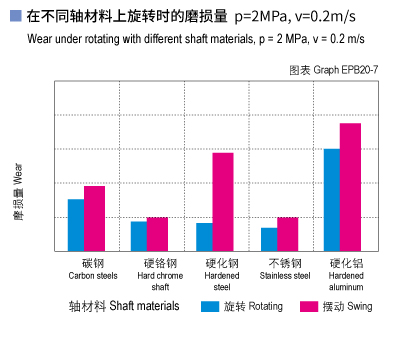

Graph EPB20-7 and EPB20-8 shows that CSB-EPB20 is rather suitable for hardened steel shaft and hardened chrome steel shaft under lower loading and Graph EPB20-7 shows that CSB-EPB20 wearing feature is better for oscillation operation than of rotation operation.
▊ Chemical resistance
CSB-EPB20 is good at chemical resistance against weak acidic medium and various kinds of lubricants.
▊ Water absorption

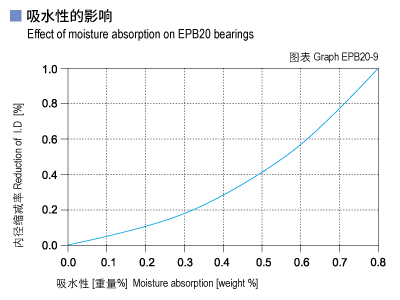

The moisture absorption of CSB-EPB20 plastic plain bearings is 0.2% in standard atmosphere. The max. water absorption is 0.8% in water. These values are very low, CSB-EPB20 plastic palin bearings is very well suited for used in water.
▊ UV resistance
Disintegration could be possible for the material CSB-EPB20 after long period of exposing under the UV ray and therefore the performance of the material will be reduced.
▊ Installation tolerances
CSB-EPB20 Tolerances after pressfit
Diameter [mm]
CSB-EPB20 E10 [mm]
Housing H7 [mm]
Shaft h9 [mm]
>0～3
+0.014～+0.054
0～+0.010
0～-0.025
>3～6
+0.020～+0.068
0～+0.012
0～-0.030
>6～10
+0.025～+0.083
0～+0.015
0～-0.036
>10～18
+0.032～+0.102
0～+0.018
0～-0.043
>18～30
+0.040～+0.124
0～+0.021
0～-0.052
>30～50
+0.050～+0.150
0～+0.025
0～-0.062
>50～80
+0.060～+0.180
0～+0.030
0～-0.074
>80～120
+0.072～+0.212
0～+0.035
0～-0.087
>120～180
+0.085～+0.245
0～+0.040
0～-0.100
Medium
EPB20 bearings resistance
Alcohol
Resistant
Hydrocarbons
Resistant
Greases. oils
Resistant
Fuels
Resistant
Diluted acids
Conditionally resistant
Strong acids
Not resistant
Diluted alkalis
Resistant
Strong alkalis
Conditionally resistant
CSB® Bearing Material Chemical Resistance
Please select bearing material and medium...
R - Resistant
CR - Conditionally resistant
NR - Not resistant
ND - No test data
RD - Resistant，but the dimension changed due to moisture absorption
NO - No data
CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
▊CSB-EPB® Plastic Bearings Finder[V2.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data. ▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements. ▊CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
CSB-SFP®
Semi-finished Products Finder V2.0
view tools
DURAPLAS® Semi-finished Products Finder V2.0
▊DURAPLAS® Semi-finished Products Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data. ▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the products must be tested again to verify whether it meets the actual use requirements. ▊DURAPLAS® Semi-finished Products Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

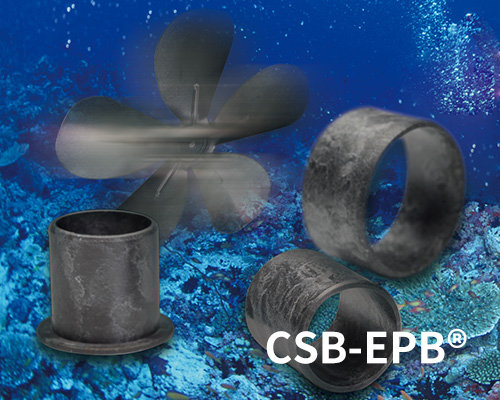

A special material for the application in water. The wear resistance could even be improved in water. It is able to be continously operated in a chemical liquid with temperature of 200 ℃.
