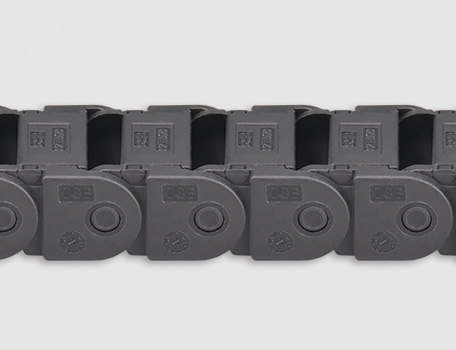

C21E.15 ESD openable micro cable carriers

Product properties

C21E.15 ESD openable micro cable carriers are openable along the outer radius, two pieces and small design chains with low weight, making them ideal for highly dynamic applications and cables ffi lled quickly. C21E.15 ESD openable micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Electro-Static discharge,Surface resistance <109Ω

● Long-term application temperature:-40/+120℃

● Inner height:15 mm
● Inner width:16-40 mm
● Bend radius:28-48 mm
● Link pitch:20 mm


C21E.15 ESD openable micro cable carriers
Dimensions

C21E.15 micro cable carriers, openable along the outer radius

C21E.15 micro cable chains, openable along the outer radius

Product features

C21E.15 ESD openable micro cable carriers are openable along the outer radius, two pieces and small design chains with low weight, making them ideal for highly dynamic applications and cables ffi lled quickly. C21E.15 ESD openable micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Electro-Static discharge,Surface resistance <109Ω

● Inner height 15mm, Inner width from 16mm to 40mm

● Small pitch for low-noise, smooth running

● Two-pieces design, openable along the outer radius

● Very lightweight, low price smallest inner heights and bend radius

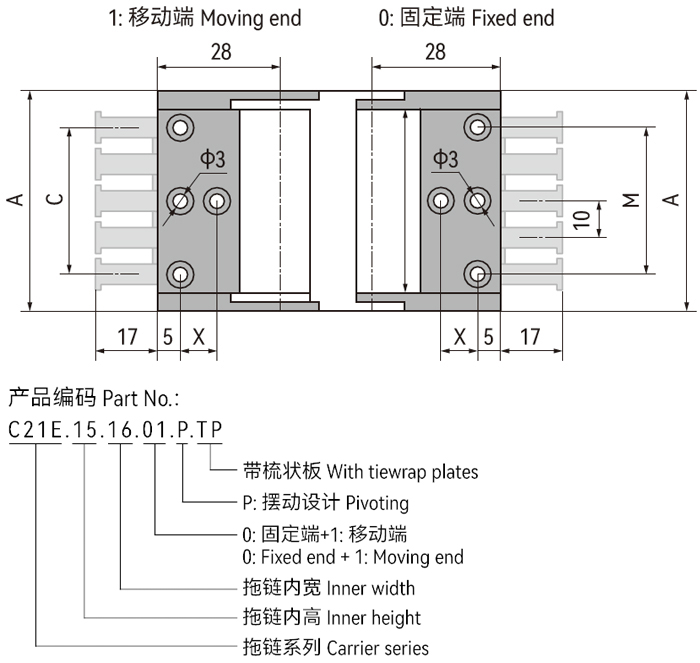

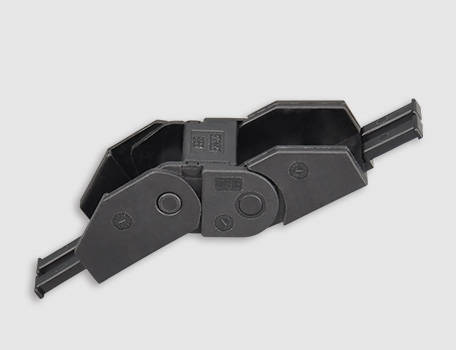

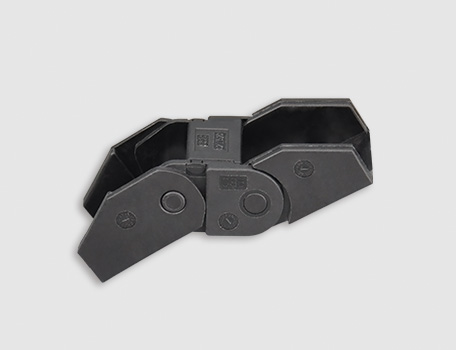

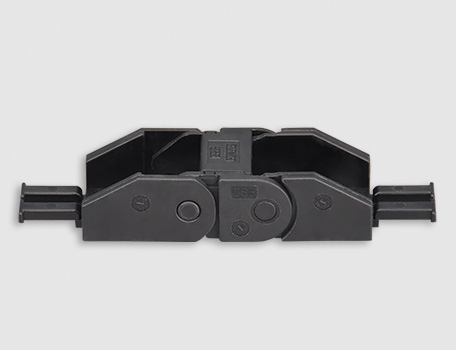

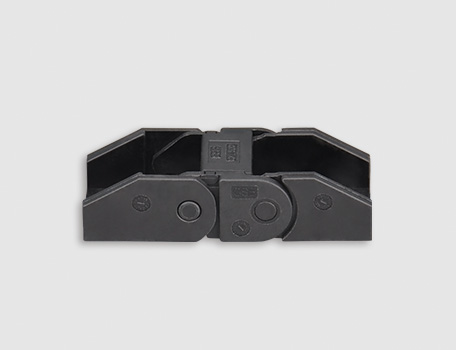

Mounting bracket dimensions

Without tiewrap plates

(Locking)

With tiewrap plates

(Locking)

Without tiewrap plates

(Pivoting)

With tiewrap plates

(Pivoting)

Inner width Bi
[mm]

A
[mm]

X
[mm]

M
[mm]

C
[mm]

Number of teeth
[pcs]

C21E.15.16.01.LC21E.15.16.01.L.TPC21E.15.16.01.PC21E.15.16.01.P.TP1624.28
/
10
2
C21E.15.20.01.LC21E.15.20.01.L.TPC21E.15.20.01.PC21E.15.20.01.P.TP2028.28
/
10
2
C21E.15.30.01.LC21E.15.30.01.L.TPC21E.15.30.01.PC21E.15.30.01.P.TP3038.28
22
20
3
C21E.15.40.01.LC21E.15.40.01.L.TPC21E.15.40.01.PC21E.15.40.01.P.TP4048.28
32
30
4

Installation dimensions

Installation dimensions

Unsupported length

≤ 0.7m


Speed / acceleration FLG

≤ 3 [m/s] / 8 [m/s² ]

Sliding length

Inapplicable

Speed / acceleration FLB

≤ 2 [m/s] / 4 [m/s² ]

Vertical hanging

≤ 5m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 0.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 0.5m

Flammability Class

UL94 HB

Order code for pre-assembled cable carriers


▊ Installation

CSB Openable micro cable chains installation

  Push and click                             Position and...                                Press and click                             Release links

Installation dimensions

ESD openable micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R028038048
H7595115
D687888
K130160195

*The required clearance height:HF=H+15mm(Fill weight 0.3kg/m)

Mounting bracket installation optional

ESD openable micro cable chains mounting bracket installation optional

*C21E.15 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

C21E.15.Bi.01.P

ESD openable micro cable chains special optional

*For unsupported and gliding applications

CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

C21 Openable micro cable chains

Type PDF
Size 505KB
Time 10-2023
No. CSB/CAT.064
download
