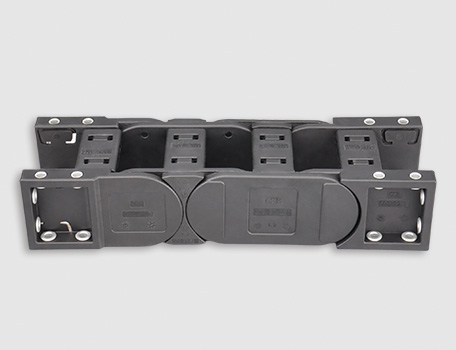

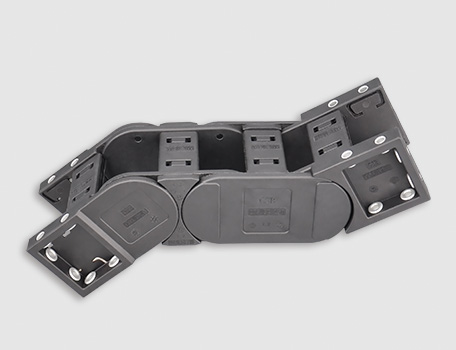

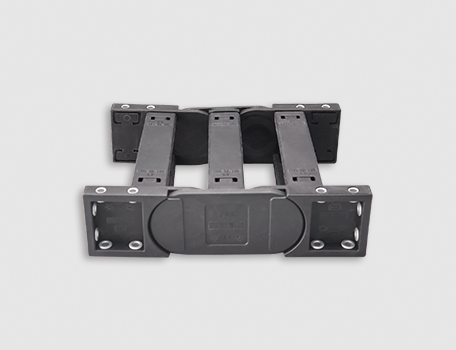

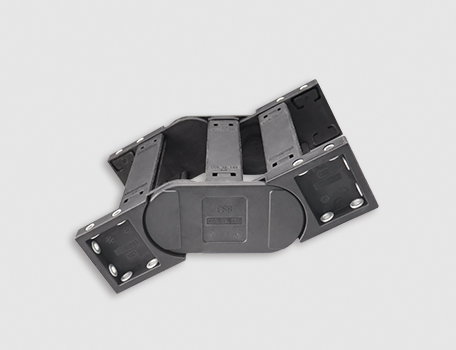

C03.80 High load cable carriers

Product properties

C03.80 high load cable carriers combines all the advantages of the previous versions and is the best DURAMOV® carriers in the product range. C03.56 cable carriers is stronger whilst having the same or even smaller dimensions than previous versions. You can increase the service life of your application with C03.56 cable carriers whilst reducing cost.
● Long-term application temperature:-40/+120℃

● Inner height:80 mm
● Inner width:100-300 mm
● Bend radius:150-500 mm
● Link pitch:111 mm


C03.80 High load cable carriers
Dimensions

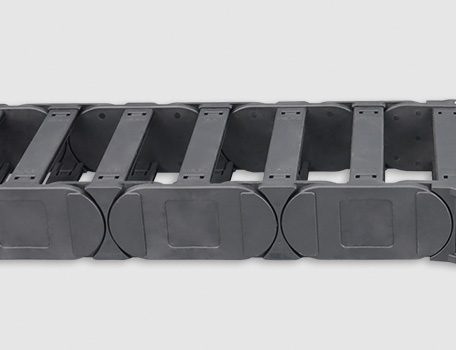

C03.80 high load cable carriers

C03.80 high load cable chains

Product features

C03.80 high load cable carriers combines all the advantages of the previous versions and is the best DURAMOV® carriers in the product range. C03.80 cable carriers is stronger whilst having the same or even smaller dimensions than previous versions. You can increase the service life of your application with C03.80 cable carriers whilst reducing cost.

● Inner height 80mm, Inner width from 100mm to 300mm

● Attachment from any side with mounting brackets

● Long service life: lateral sliding surfaces design

● High strength and stable: due to undercut design, high fill weight available

● Fast assembly: easy assembly with quick lock crossbars

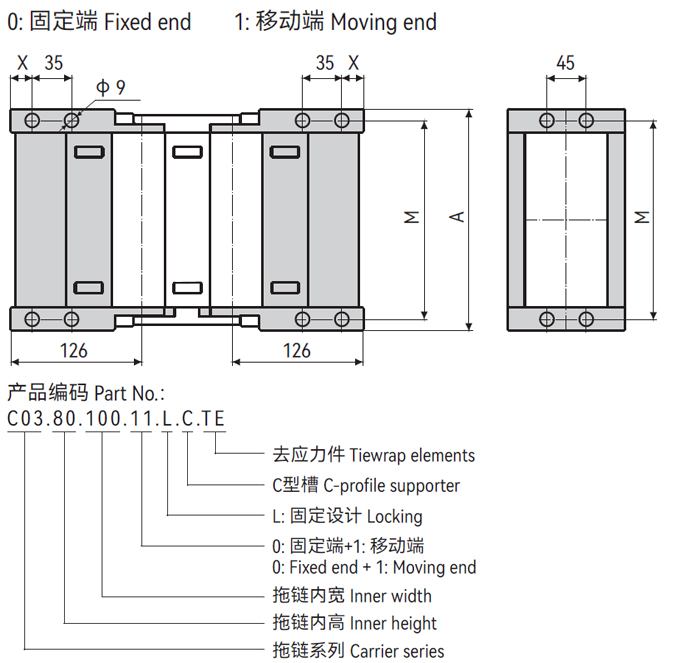

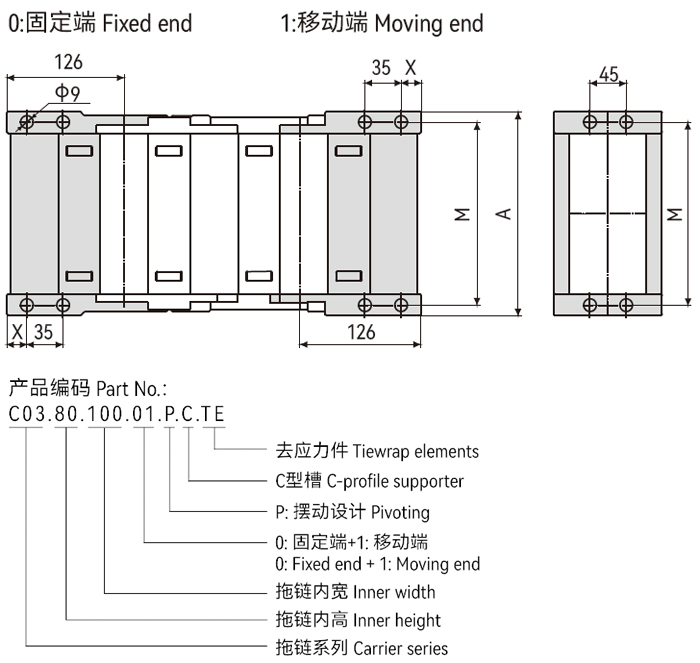

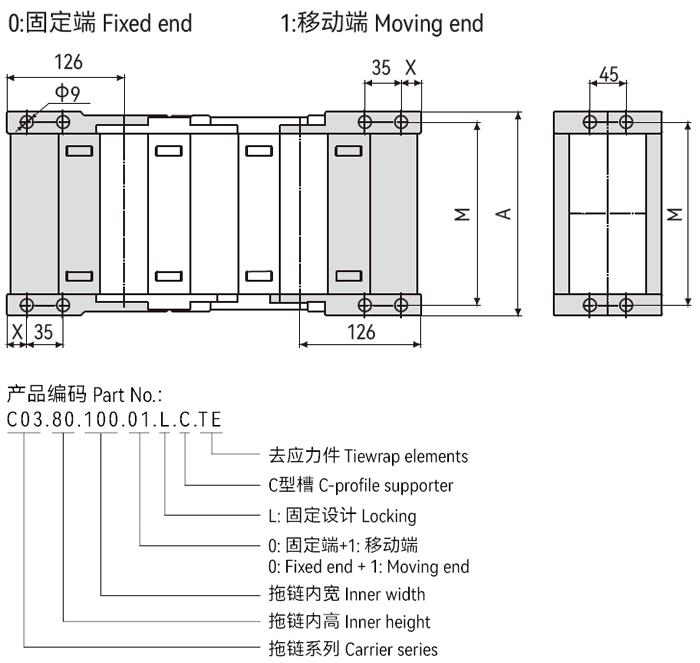

Mounting bracket dimensions


Part No. LockingPart No. Pivoting

Inner width Bi
[mm]

A
[mm]

X
[mm]

M
[mm]

Max. quantity of tiewrap elements
[pcs]

C03.80.100.01.L.C.TEC03.80.100.01.P.C.TE10014821
1286
C03.80.125.01.L.C.TEC03.80.125.01.P.C.TE12517321
1538
C03.80.150.01.L.C.TEC03.80.150.01.P.C.TE15019821
17810
C03.80.175.01.L.C.TEC03.80.175.01.P.C.TE17522321
20311
C03.80.200.01.L.C.TEC03.80.200.01.P.C.TE20024821
22813
C03.80.225.01.L.C.TEC03.80.225.01.P.C.TE22527321
25315
C03.80.250.01.L.C.TEC03.80.250.01.P.C.TE25029821
27816
C03.80.275.01.L.C.TEC03.80.275.01.P.C.TE27532321
30318
C03.80.300.01.L.C.TEC03.80.300.01.P.C.TE30034821
32820

* Available upon request

Installation dimensions

Installation dimensions

Unsupported length

≤ 5.8m


Speed / acceleration FLG

≤ 10 [m/s] / 50 [m/s² ]

Sliding length

≤ 100m

Speed / acceleration FLB

≤ 3 [m/s] / 6 [m/s² ]

Vertical hanging

≤ 60m

Sliding speed / acceleration

≤4 [m/s] / 25 [m/s² ]

Vertical standing

≤ 4.0m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 3.0m

Flammability Class

UL94 HB

Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links
② SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

CSB High load cable chains installation

Installation dimensions

High load cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R150200250300350400450500
H40850860870880890810081108
D445495545595645695745795
K693850100711641321147916351793

*The required clearance height:HF=H+40mm(Fill weight 2.5kg/m)

Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03.80 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

C03.80.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing


Vertical separators for C03 cable carriers
Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be firmly fitted in carriers

more
C-profile brackets for C03 cable carriers
C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

more
Sliding pads for cable carriers
Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

more
Horizontal separators
Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

more
BL Bellows
BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

more

CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

C03 High load cable chains

Type PDF
Size 729KB
Time 10-2023
No. CSB/CAT.064
download
