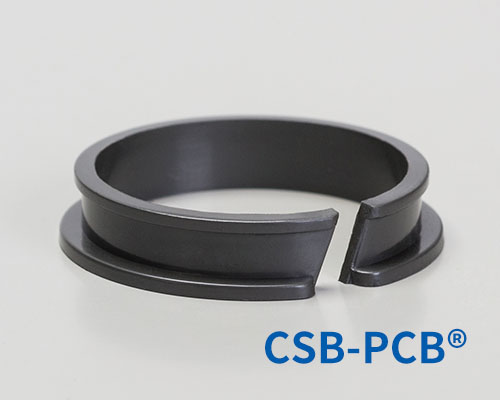

PCB Plastic clip bearings

Product properties

● The self-lubricated bearing is developed specially for the metal plate fitting. It is made with the CSB-EPB3M material which is good at shock absorbtion and wear resistance. Alternative material CSB-EPB5 is also available for high temperature application and corrosion resistance requirement

● Maintenance free, self-lubricated

● Side groove designation for easy assembly

● Groove design reserves the material expansion allowance

● Safety double flanges designation

● Suitable for rotation and sliding motions

● Lower tolerance requirement for the mounting holes


PCB Plastic clip bearings

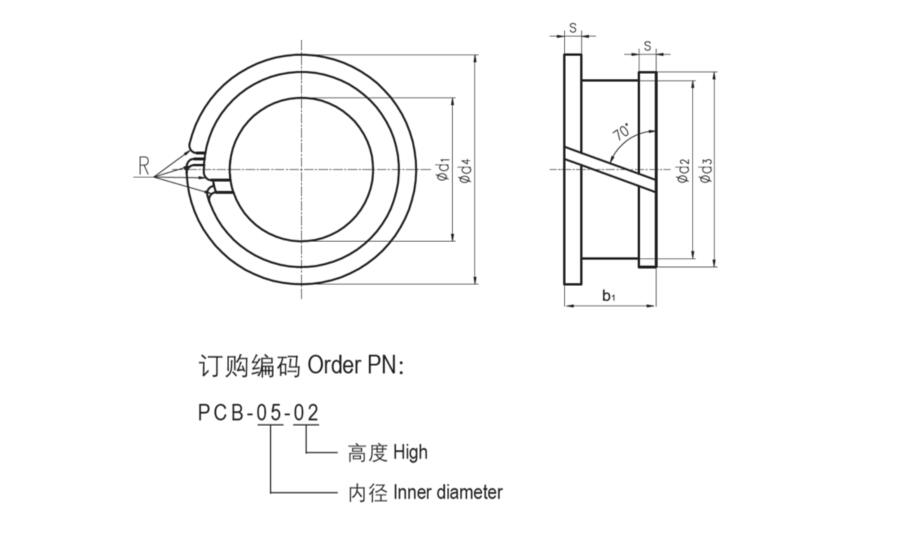

Dimensions

Structure design

CSB-PCB® Plastic clip bearing is designed with double flange to protect the shaft mounted through metal housings. The double flange and slipped gap ensures easy assembly of the bearings. The double flange design can also protect the bearing from moving out of the housing.

Material design

CSB-PCB® Plastic Clip Bearing is made from CSB-EPB3M material which is a good wear resistance polymer. The bearing self-lubricating performance is excellent for dry operation conditions. At the same time, continuous lubricating is allowed during the operation because this material is also with good isolation feature against the most common lubricants.


Assembly design

During the assembly, the bearing is pressed into the housing from the smaller flange end until the bigger flange end is pressed into the position. The spiral shape slip gap could not only make the bearing easy to be pressed into the metal housing, but also help to compensate any possible material expansion caused by the squeeze derived from the pressing. The recommended housing tolerance is H7 while the bearing could fit with the housing tolerance range up to H13. The bearing is allowed to be rotating in the housing after assembling.

PCB标准塑料卡箍轴承安装

CSB-PCB® Plastic Clip Bearings

Type PDF
Size 566KB
Time 09-2021
No. CSB/CAT.062E
download

3782

MediumPCB bearings resistance
AlcoholResistant
HydrocarbonsResistant
Greases. oilsResistant
FuelsResistant
Diluted acidsConditionally resistant
Strong acidsNot resistant
Diluted alkalisResistant
Strong alkalisConditionally resistant
CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
