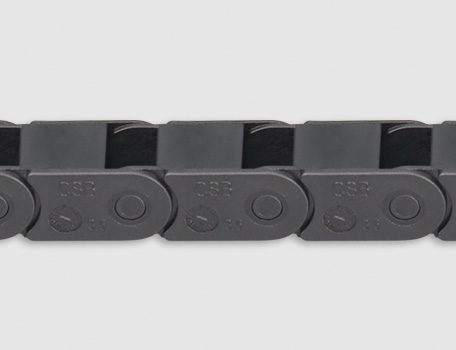

C01.10 Micro cable carriers

Product properties

C01.10 micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01.10 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Long-term application temperature:-40/+120℃
● Inner height :10 mm
● Inner width:10-30 mm
● Bend radius:18-38 mm
● Link pitch:20 mm

ESD CABLE CHAINSElectrically conductive ESD/ATEX version C01E.10 upon request


C01.10 Micro cable carriers
Dimensions

C01.10 micro cable carriers

C01.10 micro cable chains
Product features

C01.10 micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01.10 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Inner height 10mm, Inner width from 10mm to 30mm

● Small pitch for low-noise, smooth running

● One-piece design, non-openable

● Very lightweight, low price smallest inner heights and bend radius

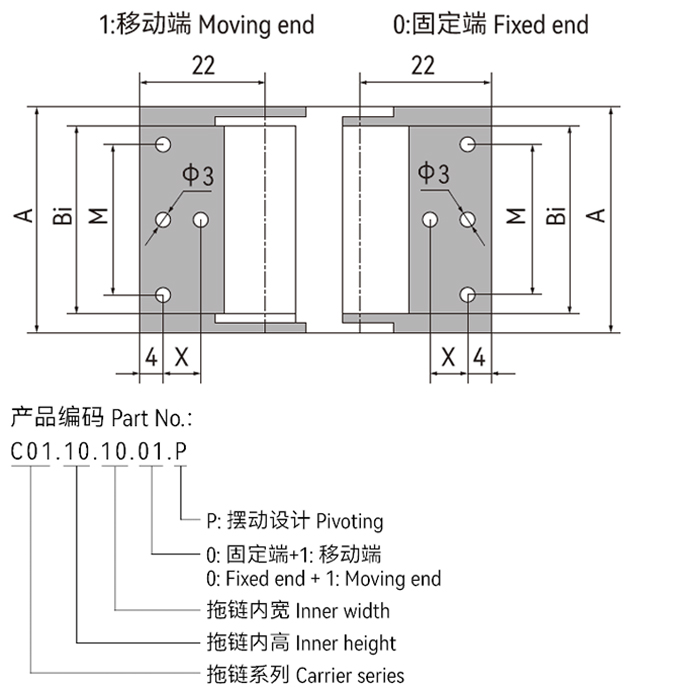

Mounting bracket dimensions


Part No. LockingPart No. Pivoting

Inner width Bi
[mm]

A
[mm]

X
[mm]

M
[mm]

C01.10.10.01.LC01.10.10.01.P1014.78
/
C01.10.16.01.LC01.10.16.01.P1620.78/
C01.10.20.01.LC01.10.20.01.P2024.78/
C01.10.30.01.LC01.10.30.01.P3034.7/22

Installation dimensions


Unsupported length

≤ 0.5m


Speed / acceleration FLG

≤ 3 [m/s] / 8 [m/s² ]

Sliding length

Inapplicable

Speed / acceleration FLB

≤ 2 [m/s] / 4 [m/s² ]

Vertical hanging

≤ 5m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 0.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 0.5m

Flammability Class

UL94 HB

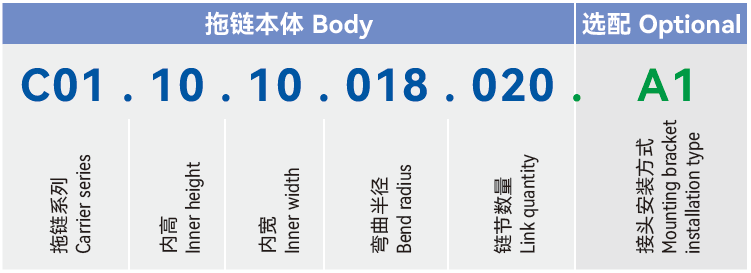

Order code for pre-assembled cable carriers



▊ Installation

CSB Micro cable chains installation

  Twist and click                                                                                     Twist and divide

Installation dimensions

Micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R018028038
H486888
D546474
K100130160

*The required clearance height:HF=H+10mm(Fill weight 0.2kg/m)

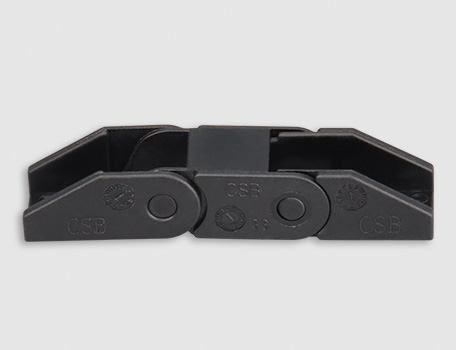

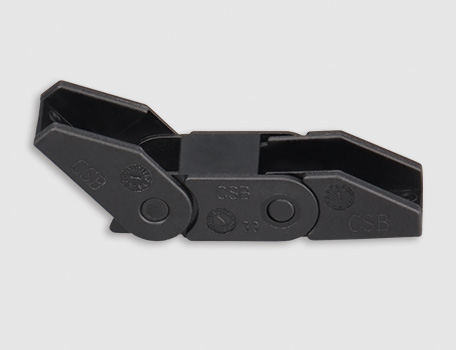

Mounting bracket installation optional

Micro cable chains mounting bracket installation optional

*C01.10 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

C01.10.Bi.01.P

Micro cable chains special optional

*For unsupported and gliding applications

CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

C01 Micro cable chains

Type PDF
Size 496KB
Time 10-2023
No. CSB/CAT.064
download
