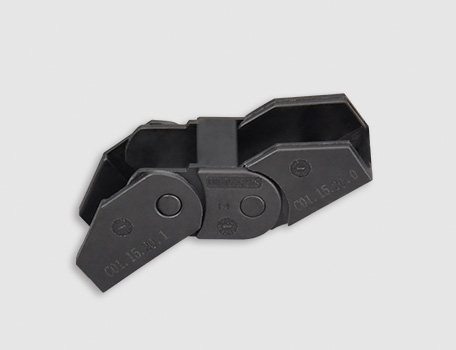

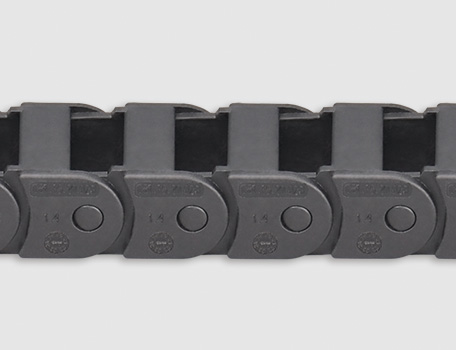

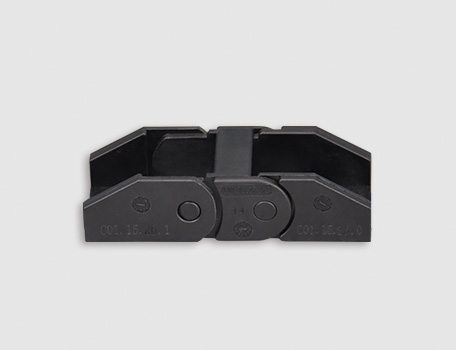

C01.15 micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01.15 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Long-term application temperature:-40/+120℃
● Inner height:15 mm
● Inner width:16-50 mm
● Bend radius:25-48 mm
● Link pitch:20 mm
Electrically conductive ESD/ATEX version C01E.15 upon request
C01.15 micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01.15 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Inner height 15mm, Inner width from 16mm to 50mm
● Small pitch for low-noise, smooth running
● One-piece design, non-openable
● Very lightweight, low price smallest inner heights and bend radius

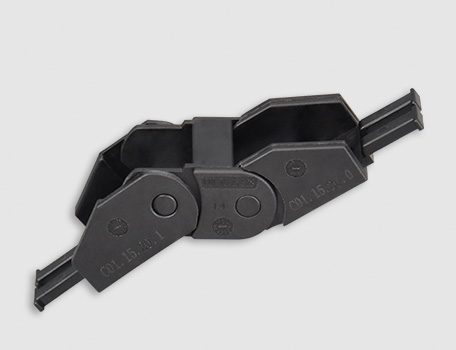

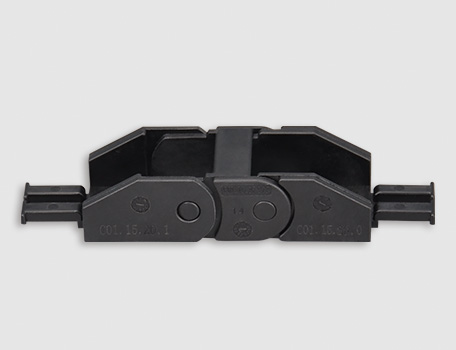

Without tiewrap plates (Locking) | With tiewrap plates (Locking) | Without tiewrap plates (Pivoting) | With tiewrap plates (Pivoting) |
|
|
|
|
|
|
C01.15.16.01.L | C01.15.16.01.L.TP | C01.15.16.01.P | C01.15.16.01.P.TP | 16 | 24.2 | 8 | / | 10 | 2 |
C01.15.20.01.L | C01.15.20.01.L.TP | C01.15.20.01.P | C01.15.20.01.P.TP | 20 | 28.2 | 8 | / | 10 | 2 |
C01.15.30.01.L | C01.15.30.01.L.TP | C01.15.30.01.P | C01.15.30.01.P.TP | 30 | 38.2 | 8 | 22 | 20 | 3 |
C01.15.40.01.L | C01.15.40.01.L.TP | C01.15.40.01.P | C01.15.40.01.P.TP | 40 | 48.2 | 8 | 32 | 30 | 4 |
C01.15.50.01.L | C01.15.50.01.L.TP | C01.15.50.01.P | C01.15.50.01.P.TP | 50 | 58.2 | 8 | 42 | 40 | 5 |
Unsupported length | ≤ 0.7m | Speed / acceleration FLG | ≤ 3 [m/s] / 8 [m/s² ] | ||
Sliding length | Inapplicable | Speed / acceleration FLB | ≤ 2 [m/s] / 4 [m/s² ] | ||
Vertical hanging | ≤ 5m | Sliding speed / acceleration | Inapplicable | ||
Vertical standing | ≤ 0.5m | Permitted temperature | -40℃ ~120℃ | ||
Side-unsupported length | ≤ 0.5m | Flammability Class | UL94 HB |
Twist and click Twist and divide
*Please consult CSB® if space is particularly restricted.
R | 025 | 028 | 038 | 048 |
H | 69 | 75 | 95 | 115 |
D | 65 | 68 | 78 | 88 |
K | 120 | 130 | 160 | 195 |
*The required clearance height:HF=H+15mm(Fill weight 0.3kg/m)
*C01.15 Possible installation configurations

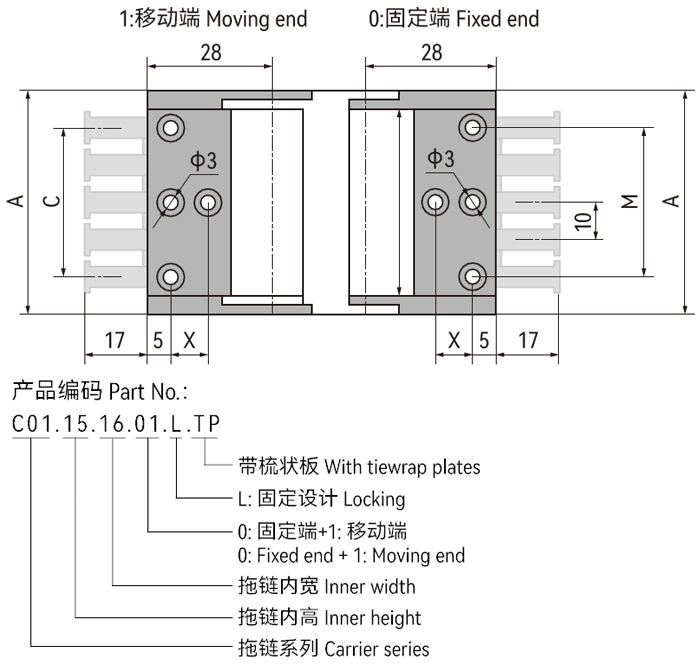

*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains
*For unsupported and gliding applications
▊CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.
