C11.07 Opening micro cable carriers

Product properties

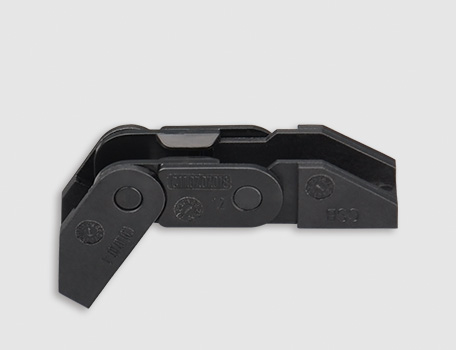

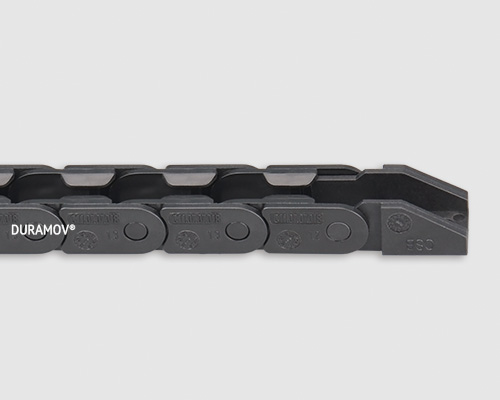

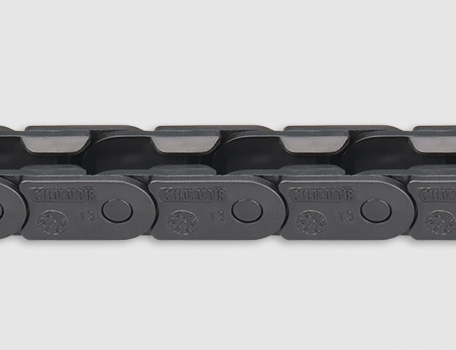

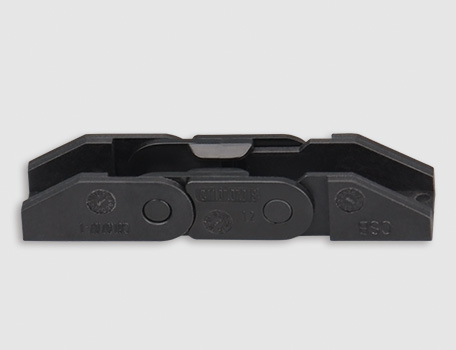

C11.07 micro cable carriers are very small, one piece and open design chains with low weight, making them ideal for highly dynamic applications and cables filled quickly. C11.07 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Long-term application temperature:-40/+80℃

● Inner height:7 mm
● Inner width:7-30 mm
● Bend radius:15-48 mm
● Link pitch:16.7 mm


C11.07 Opening micro cable carriers
Dimensions

C11.07 micro cable carriers, open design and cable filled quickly

C11.07 micro cable chains, open design and cable filled quickly

Product features

C11.07 micro cable carriers are very small, one piece and open design chains with low weight, making them ideal for highly dynamic applications and cables filled quickly. C11.07 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Inner height 7mm, Inner width from 7mm to 30mm

● Small pitch for low-noise, smooth running

● One-piece design, non-openable

● Very lightweight, low price smallest inner heights and bend radius

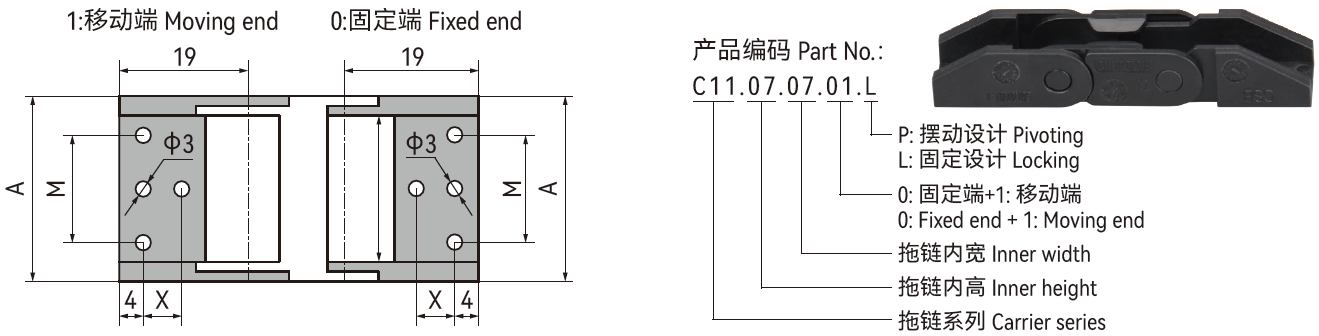

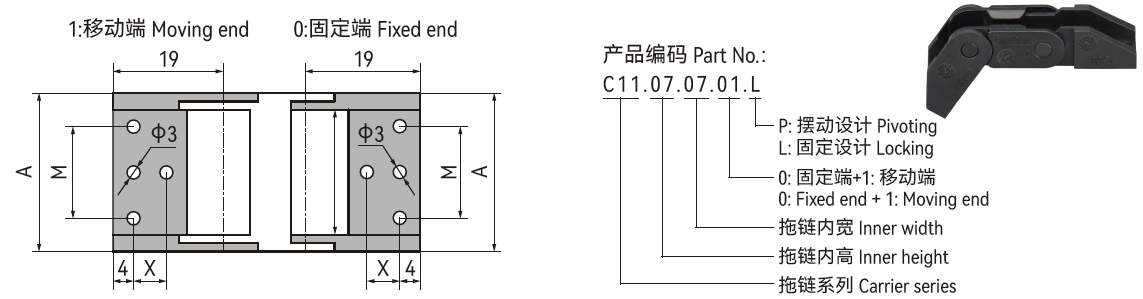

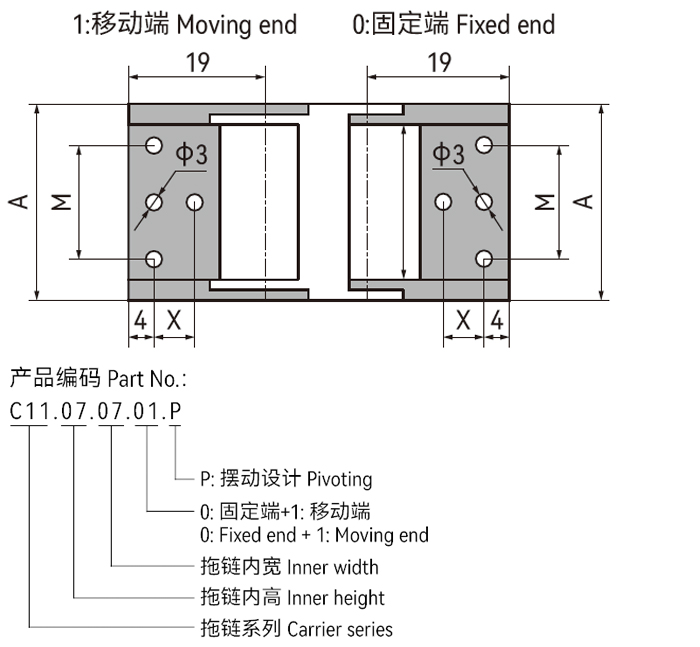

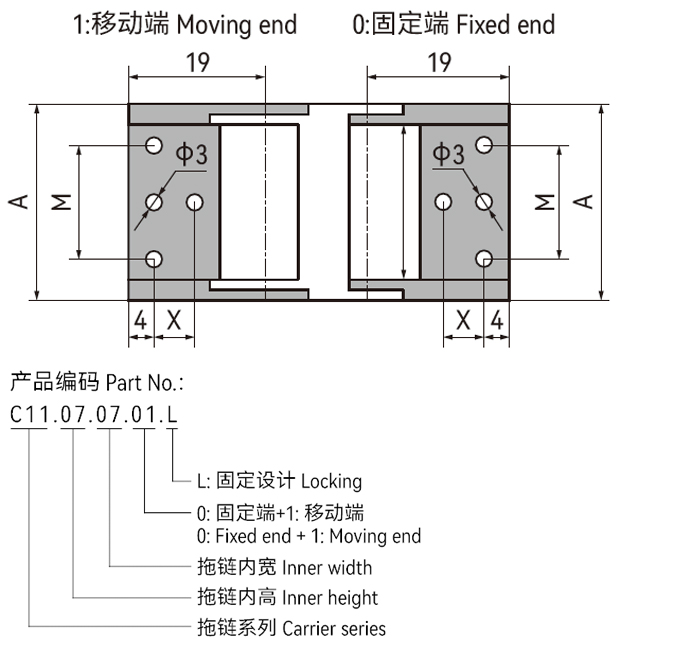

Mounting bracket dimensions


Part No. LockingPart No. Pivoting

Inner width Bi
[mm]

A
[mm]

X
[mm]

M
[mm]

C11.07.07.01.LC11.07.07.01.P7128
/
C11.07.10.01.LC11.07.10.01.P1015
8
/
C11.07.16.01.LC11.07.16.01.P1621
8
/
C11.07.20.01.LC11.07.20.01.P2025
8/
C11.07.30.01.LC11.07.30.01.P3035/22

*Available upon request

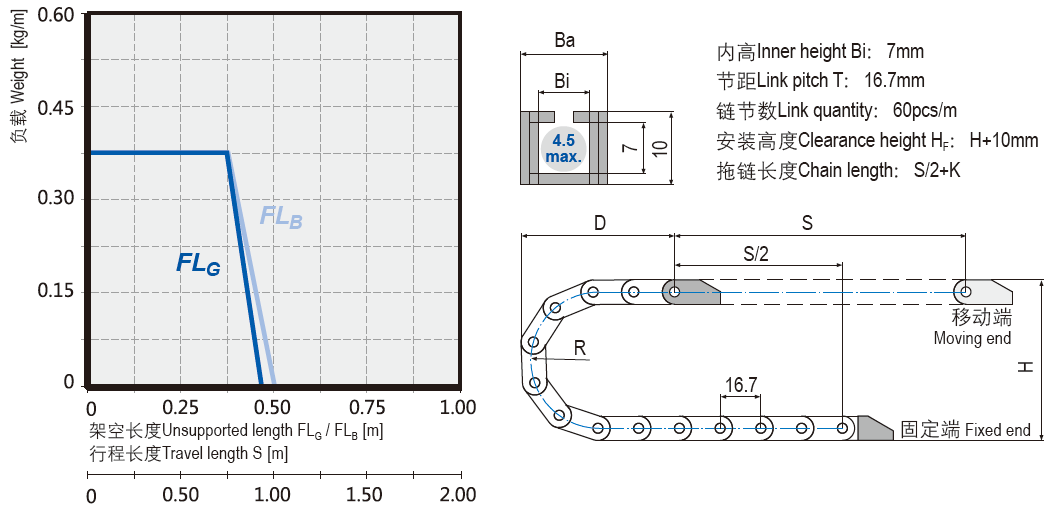

Installation dimensions


Unsupported length

≤ 0.5m


Speed / acceleration FLG

≤ 3 [m/s] / 8 [m/s² ]

Sliding length

Inapplicable

Speed / acceleration FLB

≤ 2 [m/s] / 4 [m/s² ]

Vertical hanging

≤ 5m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 0.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 0.5m

Flammability Class

UL94 V2

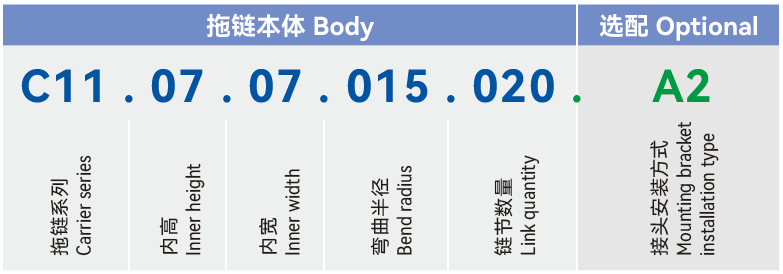

Order code for pre-assembled cable carriers


▊ Installation

CSB Opening micro cable chains installation

  Twist and click                                               Press in cable                                                 Twist and divide

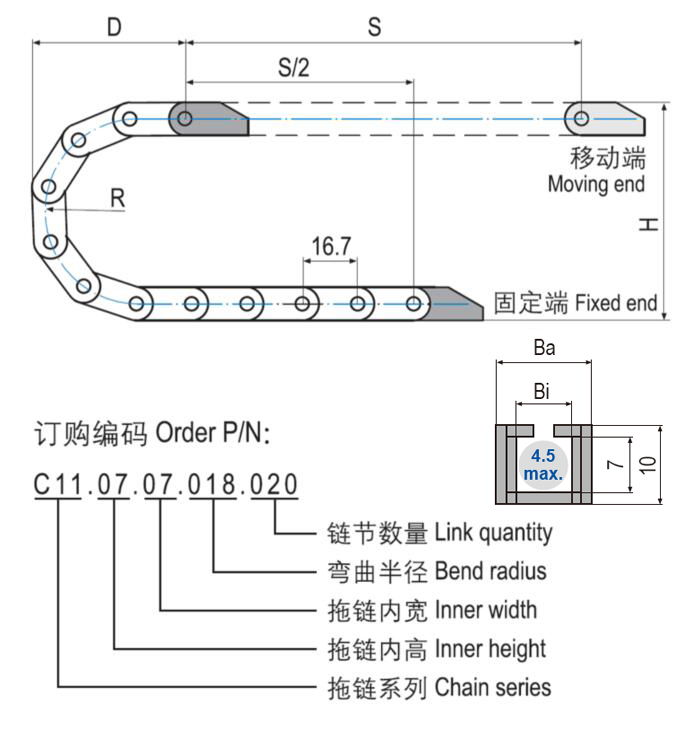

Installation dimensions

Micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R015018028038048
H40466686106
D4548586878
K8590125155185

*The required clearance height:HF=H+10mm(Fill weight 0.1kg/m)

Mounting bracket installation optional

Micro cable chains mounting bracket installation optional

*C11.07 Possible installation configurations
*A2|A4 Please indicate installation code for pre-assembled chains

C11.07.Bi.01.P

Micro cable chains special optional

*For unsupported and gliding applications






No tools

C11 Opening micro cable chains

Type PDF
Size 506KB
Time 10-2023
No. CSB/CAT.064
download
