C11.10 Opening micro cable carriers - CSB® Plastic Bearing Technology

Product properties

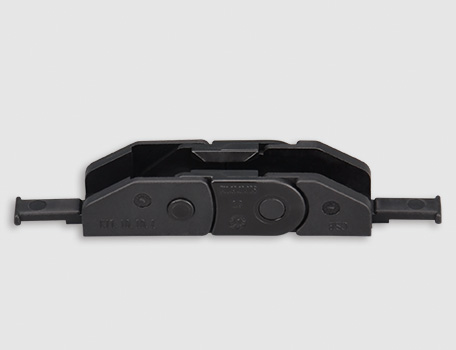

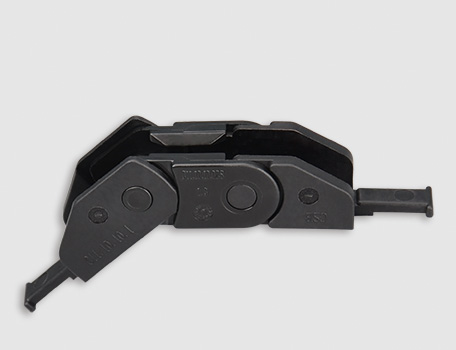

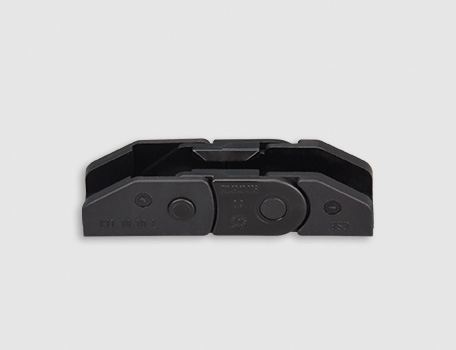

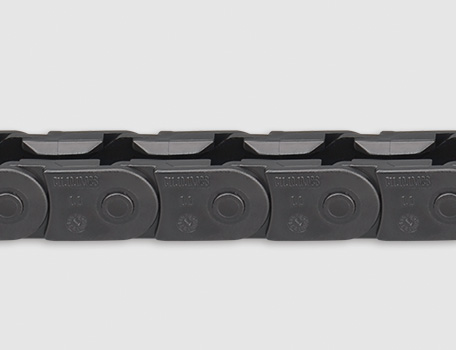

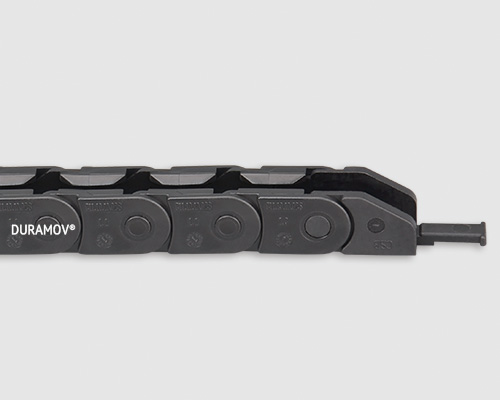

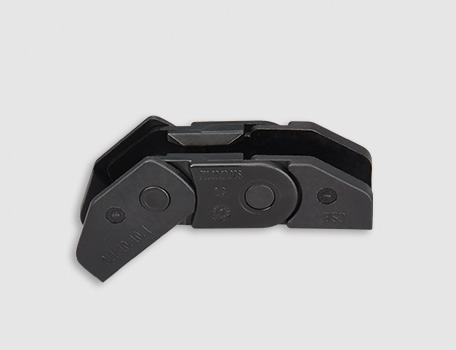

C11.10 micro cable carriers are very small, one piece and open design chains with low weight, making them ideal for highly dynamic applications and cables filled quickly. C11.10 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.
● Long-term application temperature：-40/+80℃

● Inner height：10 mm
● Inner width：10-20 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

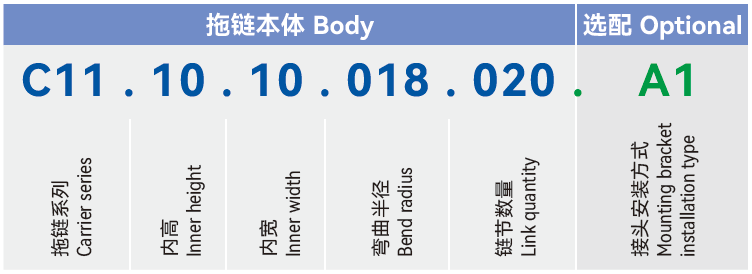

Standard products

C11.10 Opening micro cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

*Lead time [wks]：

Shop now

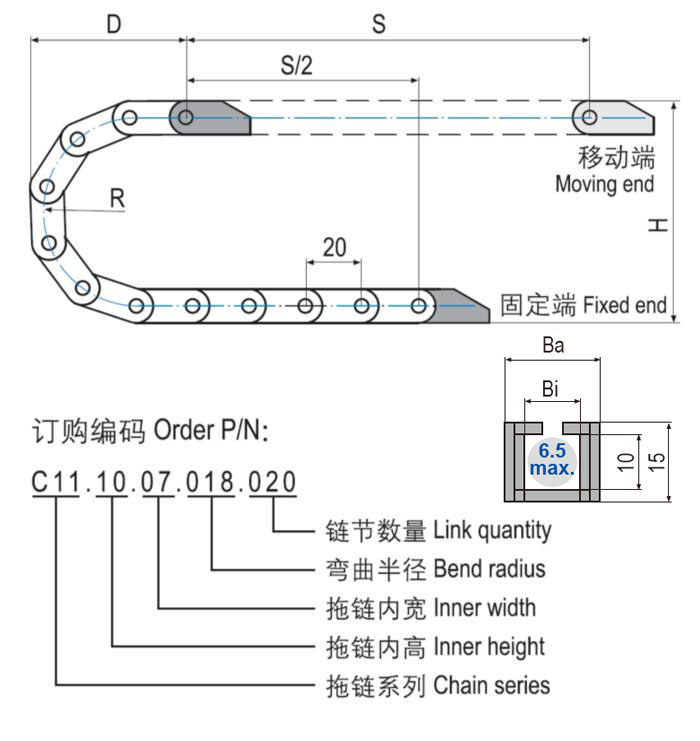

Dimensions

▊C11.10 micro cable carriers, open design and cable ﬁlled quickly

C11.10 micro cable chains, open design and cable ﬁ lled quickly

▊Product features

● Inner height 10mm, Inner width from 10mm to 20mm

● Small pitch for low-noise, smooth running

● One-piece design, non-openable

● Very lightweight, low price smallest inner heights and bend radius

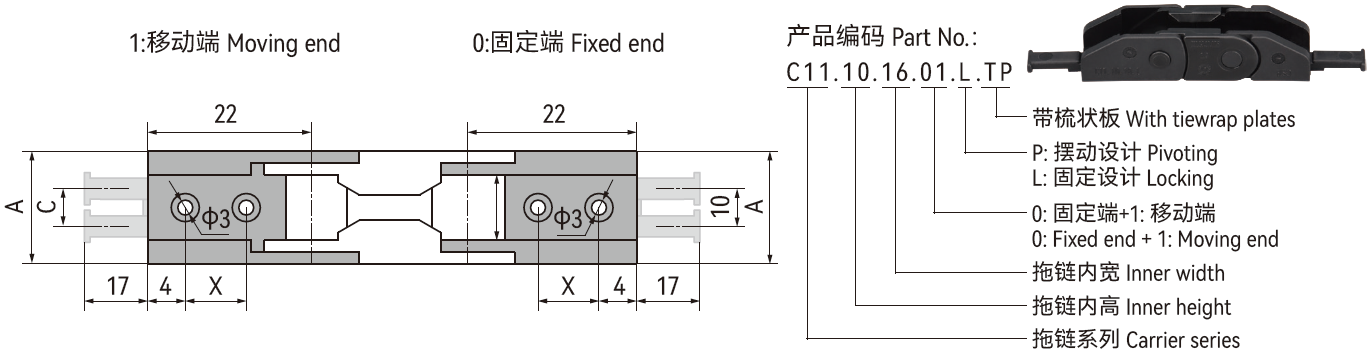

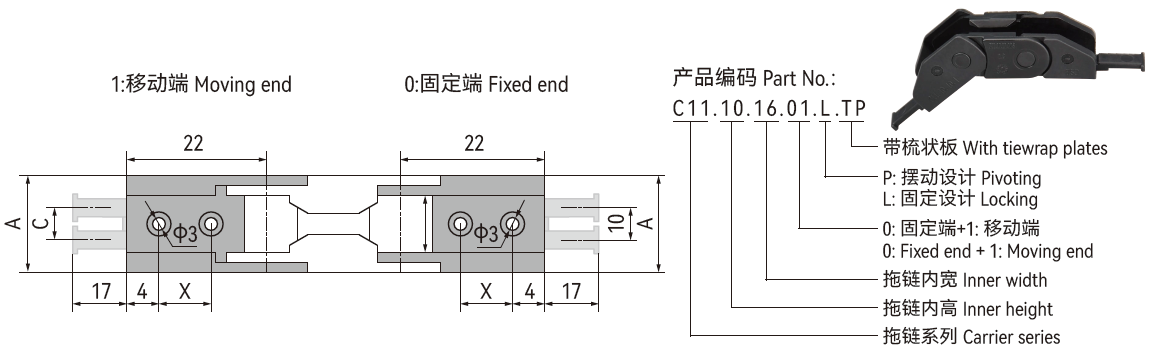

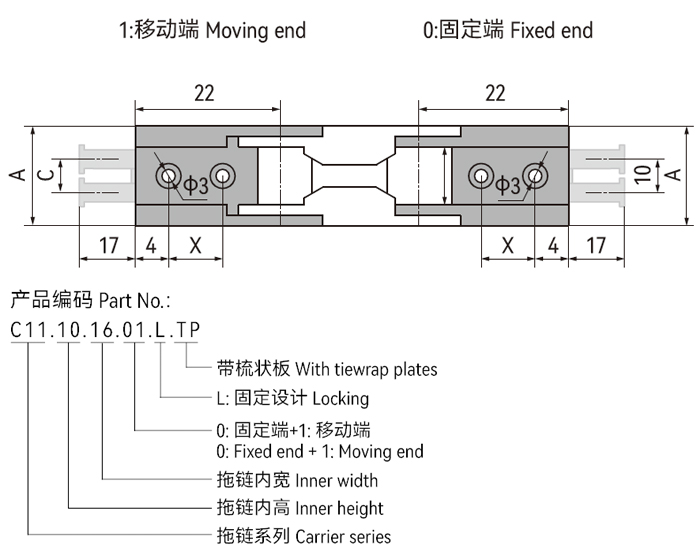

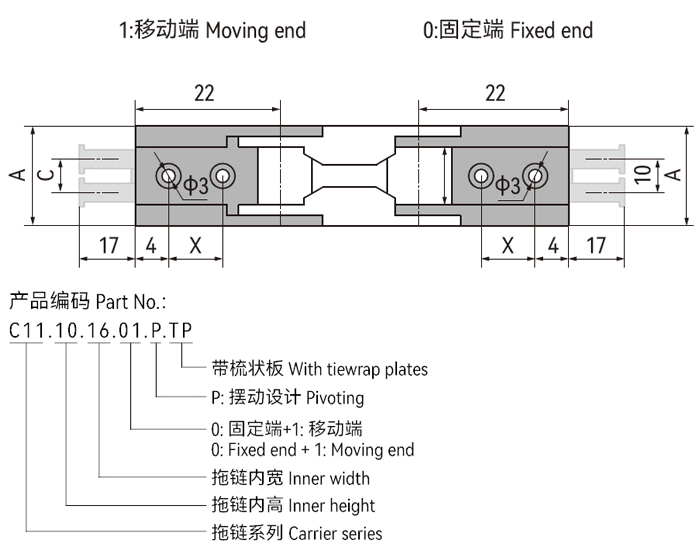

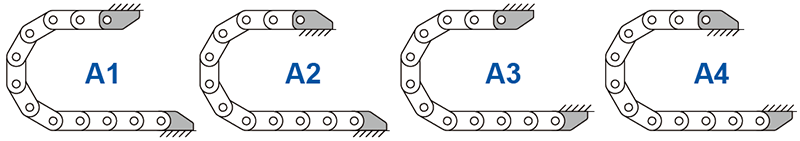

▊Mounting bracket dimensions


Without tiewrap plates （Locking）	With tiewrap plates （Locking）	Without tiewrap plates （Pivoting）	With tiewrap plates （Pivoting）	Inner width Bi [mm]	A [mm]	X [mm]	C [mm]	Number of teeth [pcs]
C11.10.10.01.L	/	C11.10.10.01.P	/	10	16.5	8	/	/
C11.10.16.01.L	C11.10.16.01.L.TP	C11.10.16.01.P	C11.10.16.01.P.TP	16	22.5	8	10	2
C11.10.20.01.L	C11.10.20.01.L.TP	C11.10.20.01.P	C11.10.20.01.P.TP	20	26.5	8	10	2

*Available upon request

▊Installation dimensions

Unsupported length	≤ 0.5m	Speed / acceleration FL_G	≤ 3 [m/s] / 8 [m/s² ]
Sliding length	Inapplicable	Speed / acceleration FL_B	≤ 2 [m/s] / 4 [m/s² ]
Vertical hanging	≤ 5m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 0.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 0.5m	Flammability Class	UL94 V2
