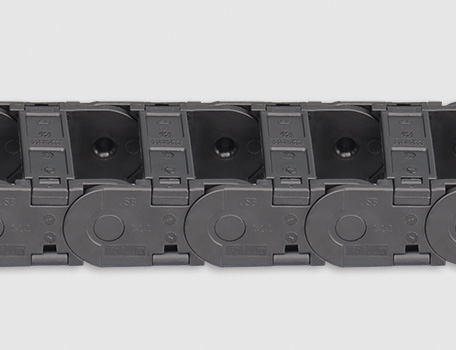

C02.45 Universal cable carriers

Product properties

C02.45 universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Long-term application temperature:-40/+120℃
● Inner height:45 mm
● Inner width:75-175 mm
● Bend radius:75-300 mm
● Link pitch:67 mm

ESD CABLE CHAINSElectrically conductive ESD/ATEX version C02E.45 upon request


C02.45 Universal cable carriers
Dimensions

C02.45 universal cable carriers

C02.45 universal cable chains

Product features

C02.45 universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options. ● Inner height 45mm, Inner width from 75mm to 175mm

● Easy assembly: Chain links openable along inner or outer radius from both sides

● High strength: large pin/bore and crossbar with high locking force

● Long service life: lateral sliding surfaces design

● For long unsupported lengths: strength and double stop-dog design

● Universal connection: many mounting options with or without strain relief

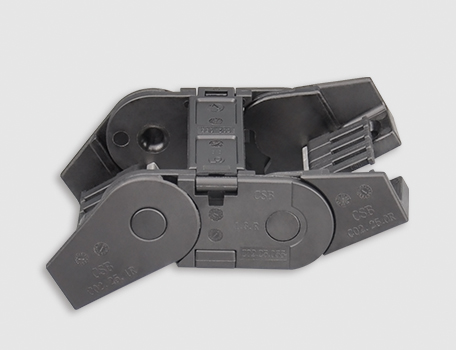

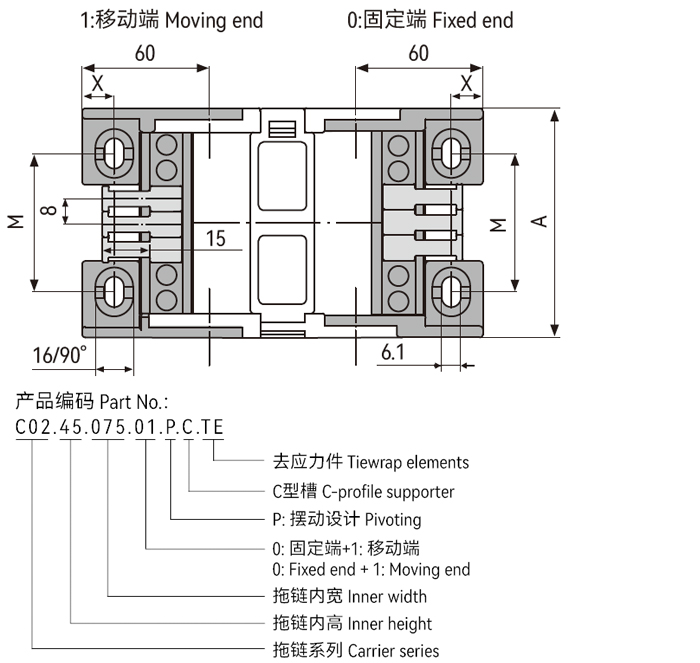

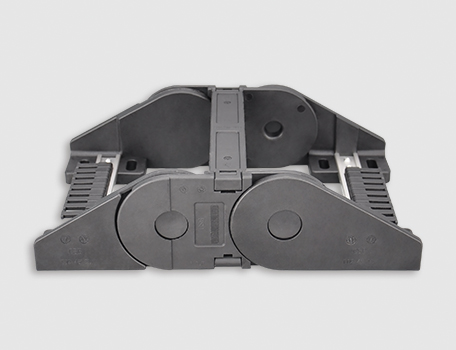

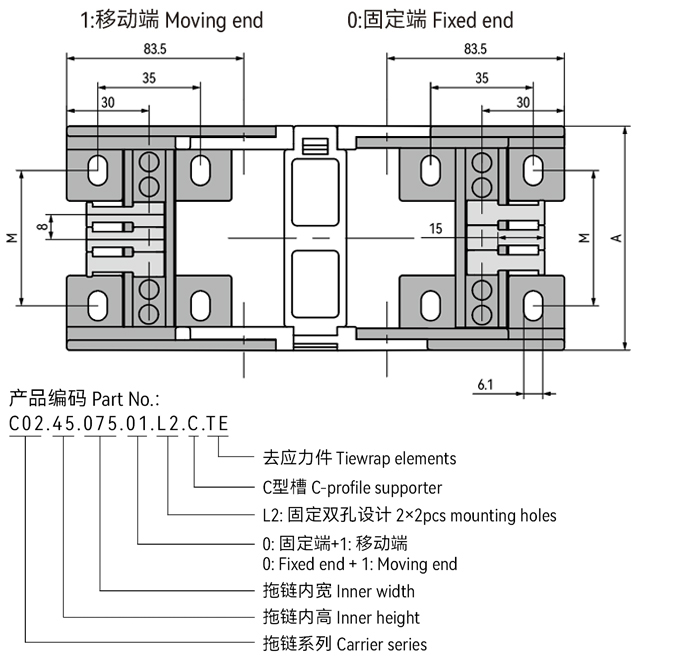

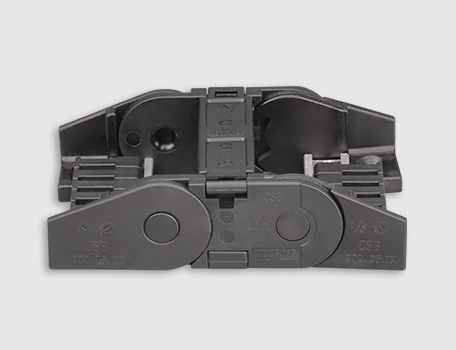

Mounting bracket dimensions


Part No. LockingPart No. Pivoting

Inner width Bi
[mm]

A
[mm]

X
[mm]

M
[mm]

Max. quantity of tiewrap elements
[pcs]

C02.45.075.01.L.C.TEC02.45.075.01.P.C.TE759520
53
8
C02.45.080.01.L.C.TEC02.45.080.01.P.C.TE8010020
58
9
C02.45.100.01.L.C.TEC02.45.100.01.P.C.TE10012020
78
11
C02.45.125.01.L.C.TEC02.45.125.01.P.C.TE12514520
10314
C02.45.150.01.L.C.TEC02.45.150.01.P.C.TE15017020
12817
C02.45.175.01.L.C.TEC02.45.175.01.P.C.TE17519520
153
21

Installation dimensions


Unsupported length

≤ 3.7m


Speed / acceleration FLG

≤ 10 [m/s] / 50 [m/s² ]

Sliding length

Inapplicable

Speed / acceleration FLB

≤ 3 [m/s] / 6 [m/s² ]

Vertical hanging

≤ 50m

Sliding speed / acceleration

Inapplicable

Vertical standing

≤ 4.5m

Permitted temperature

-40℃ ~120℃

Side-unsupported length

≤ 2.5m

Flammability Class

UL94 HB

Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

CSB Universal cable chains installation

Installation dimensions

Universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R075100125150200250300
H214264314364464564664
D208233258283333383433
K3704505306107659201080

*The required clearance height:HF=H+25mm(Fill weight 1.5kg/m)

Mounting bracket installation optional

Universal cable chains mounting bracket installation optional

*C02.45 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

C02.45.Bi.01.P.C

Universal cable chains special optional

*For unsupported and gliding applications

Universal cable chains S-shaped Standing

*S-shaped Standing


Vertical separators for C02 cable carriers
Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be firmly fitted in carriers

more
C-profile brackets for C02 cable carriers
C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

more
Horizontal separators
Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

more
BL Bellows
BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

more

CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

C02 Universal cable chains

Type PDF
Size 687KB
Time 10-2023
No. CSB/CAT.064
download
